Part Search
Product Details
Brand

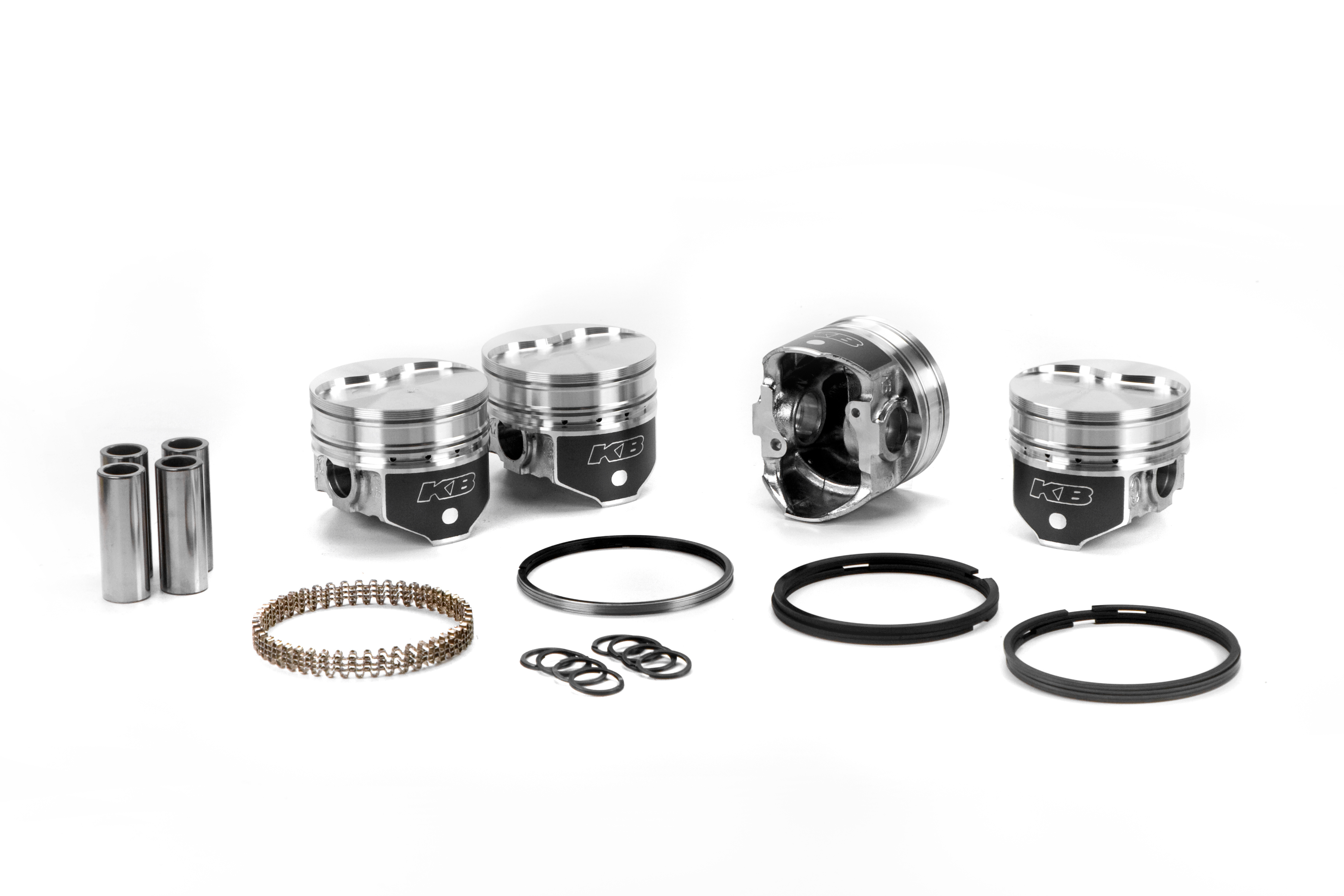

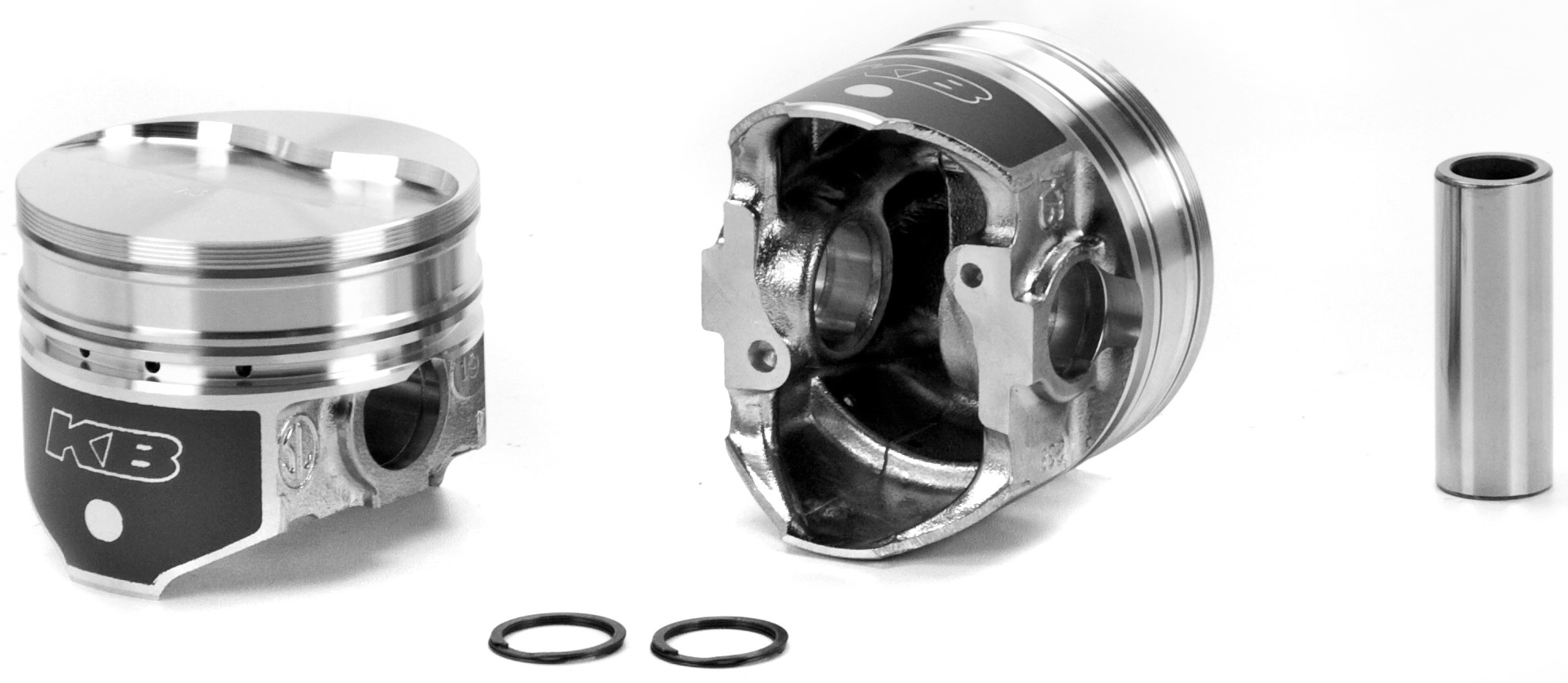

Engine Piston Set | KB239.1.5MM

Centered pin.

KB Hyper Piston - Chry 2.2L Rod 5.945 Flat Top +5cc 2V

PDF Documents
KB_Automotive_Installation_Instructions.pdf pdf Installation Instruction

Also Available...

Product Specifications
Engine Manufacturer Chrysler
Engine Family Mopar I4
Year Range 1981-1994
Eng. Disp. In. 134
Eng. Disp Liters 2.2
Piston Material Cast 390 Hypereutectic Alloy
Bore Diameter IN 3.445
Bore Diameter MM 87.5
Stroke (in) 3.622
Stroke (mm) 92.0
Rod (in) 5.945
Rod (mm) 151.003
Compression Height IN 1.594
Compression Height MM 40.5
Ring Pack 1.5mm, 1.5mm, 4.0mm
Pin Diameter (in) .901
Pin Diameter (mm) 22.9
Pin Type Press or Floating
Pin Configuration Centered
Pin Number 0901x216K
Lock R-18
Crown Type FLAT TOP 2V
Crown (cc) +5cc
Compression Ratio 50-10.3, 53-9.9, 56-9.5
Intake Valve Depth/diameter .162/1.750
Exhaust Valve Depth/diameter .162/1.750
Top Land .214
Oe Deck Height 9.36
Oversized Yes
Oversize 1.5mm
Oversizes STD .5mm .75mm 1.0mm 1.5mm
