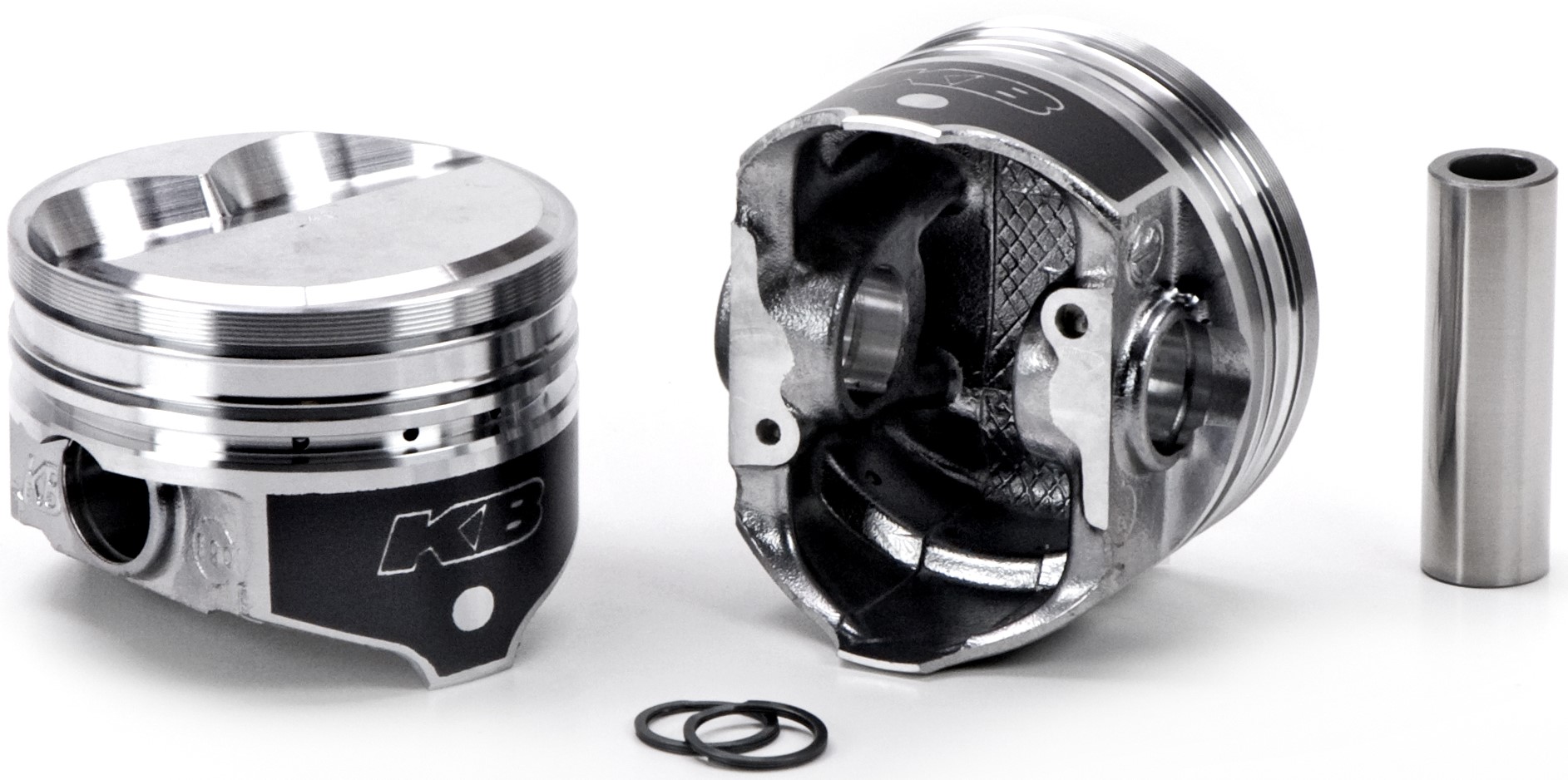

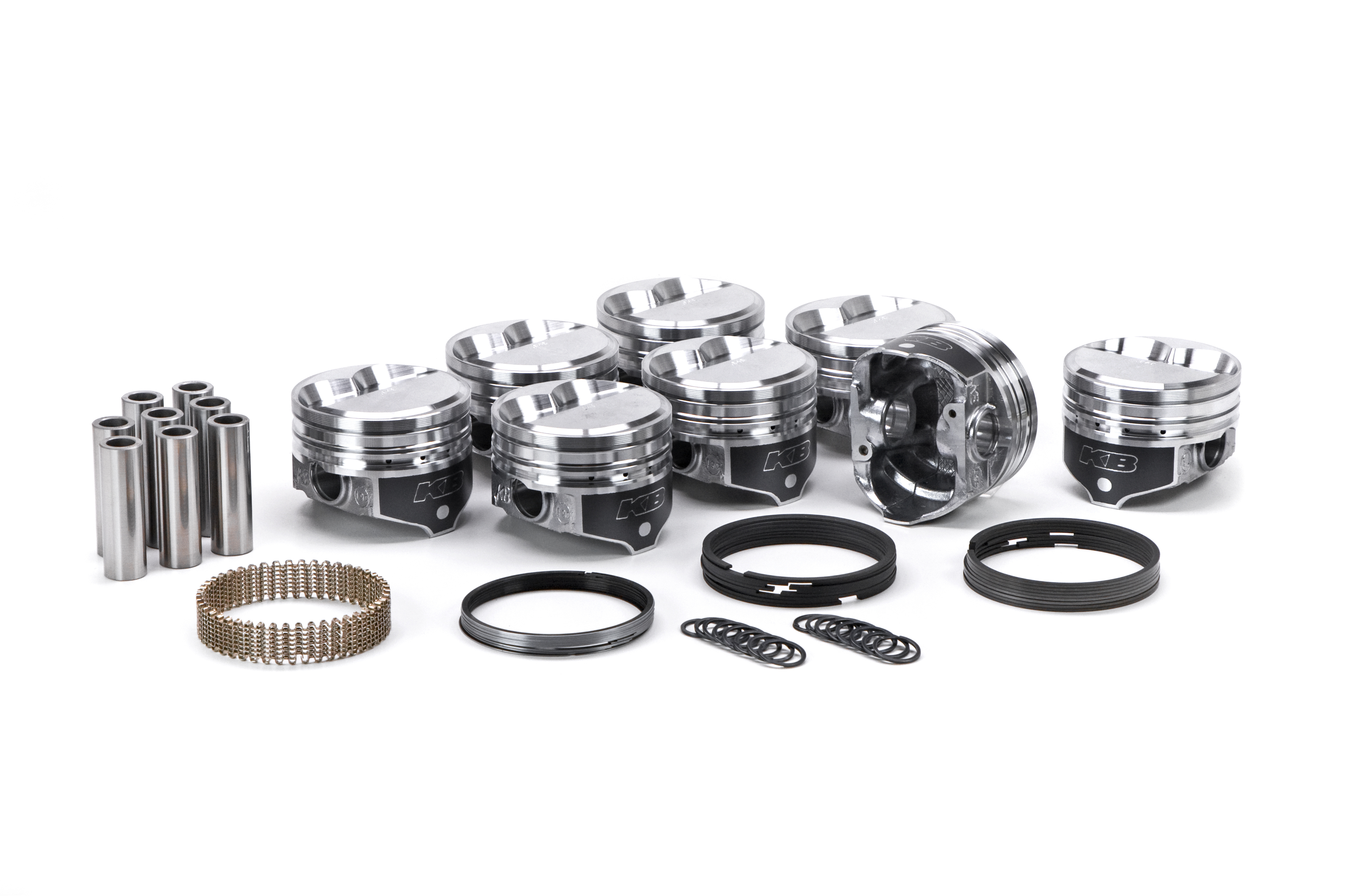

Engine Piston Kit | KB190KTM.020

Centered pin. Piston may protrude on 1992 and up Magnum truck blocks. Does not fit 62cc Magnum head.

1 Set KB190.020/1 Set 4000AM8.020

PDF Documents
KB_Automotive_Installation_Instructions.pdf pdf Installation Instruction

Product Specifications
Sold As Complete Piston and Ring Kit
Engine Manufacturer Chrysler
Engine Family Mopar Small Block LA
Year Range 1958-2009
Bore Diameter IN 4.0
Bore (in) 4
Bore (mm) 101.6
Eng. Disp Liters 5.9
Stroke (in) 3.58
Eng. Disp. Liters 5.9
Stroke (mm) 90.9
Oversized Yes
Eng. Disp. In. 360
Compression Height IN 1.675
Oversize .020
Oversizes STD .020 .030 .040 .060
Rod (in) 6.123
Rod (mm) 155.5242
Oe Deck Height 9.599
Pin Number 0984x300K
Compression Height IN 1.675
Pin Configuration Centered
Compression Height MM 42.5
Crown (cc) -1.2cc
Lock PRH107-3
Compression Ratio 62-11.8, 64-11.5, 68-10.9, 72-10.5
Crown Type .080" SOLID DOME 2V
Pin Type Press or Floating
Pin Diameter (in) .984
Intake Valve Depth/diameter .366/2.200
Pin Diameter (mm) 25.0
Alloy Cast 390 Hypereutectic Alloy
Exhaust Valve Depth/diameter .366/2.200
Ring Pack 5/64, 5/64, 3/16
Piston Material Cast 390 Hypereutectic Alloy
Top Land .275
