Engine Piston Set | 1130.030

  • 3.000" diameter recess, .147" deep.
  • 4 valve reliefs.
  • Head volume +19cc.

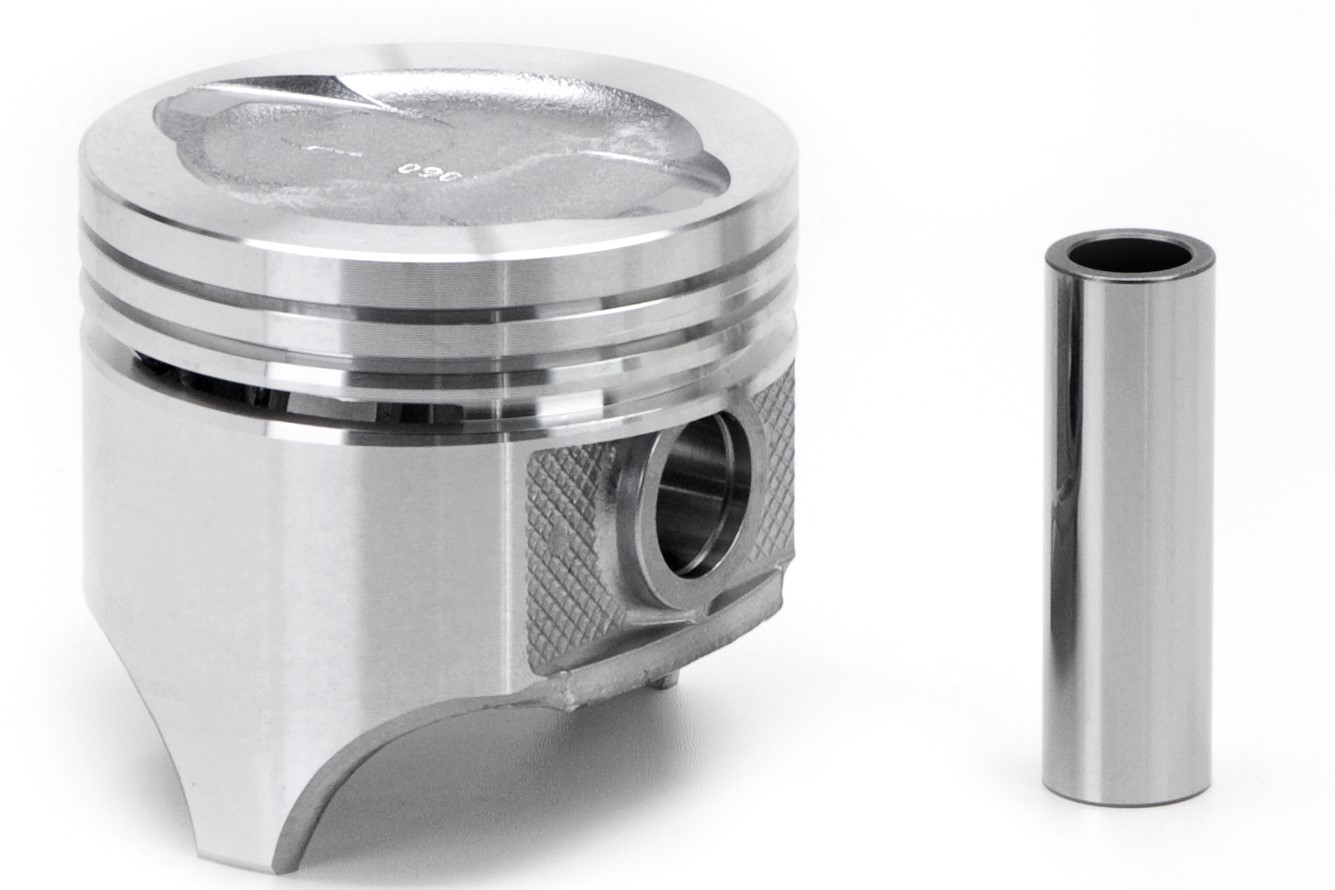

Silv-O-Lite Piston - Ford 390ci/6.4L (V8)

PDF Documents
SIL_Instruc.pdf pdf Installation Instruction

Also Available...

Product Specifications

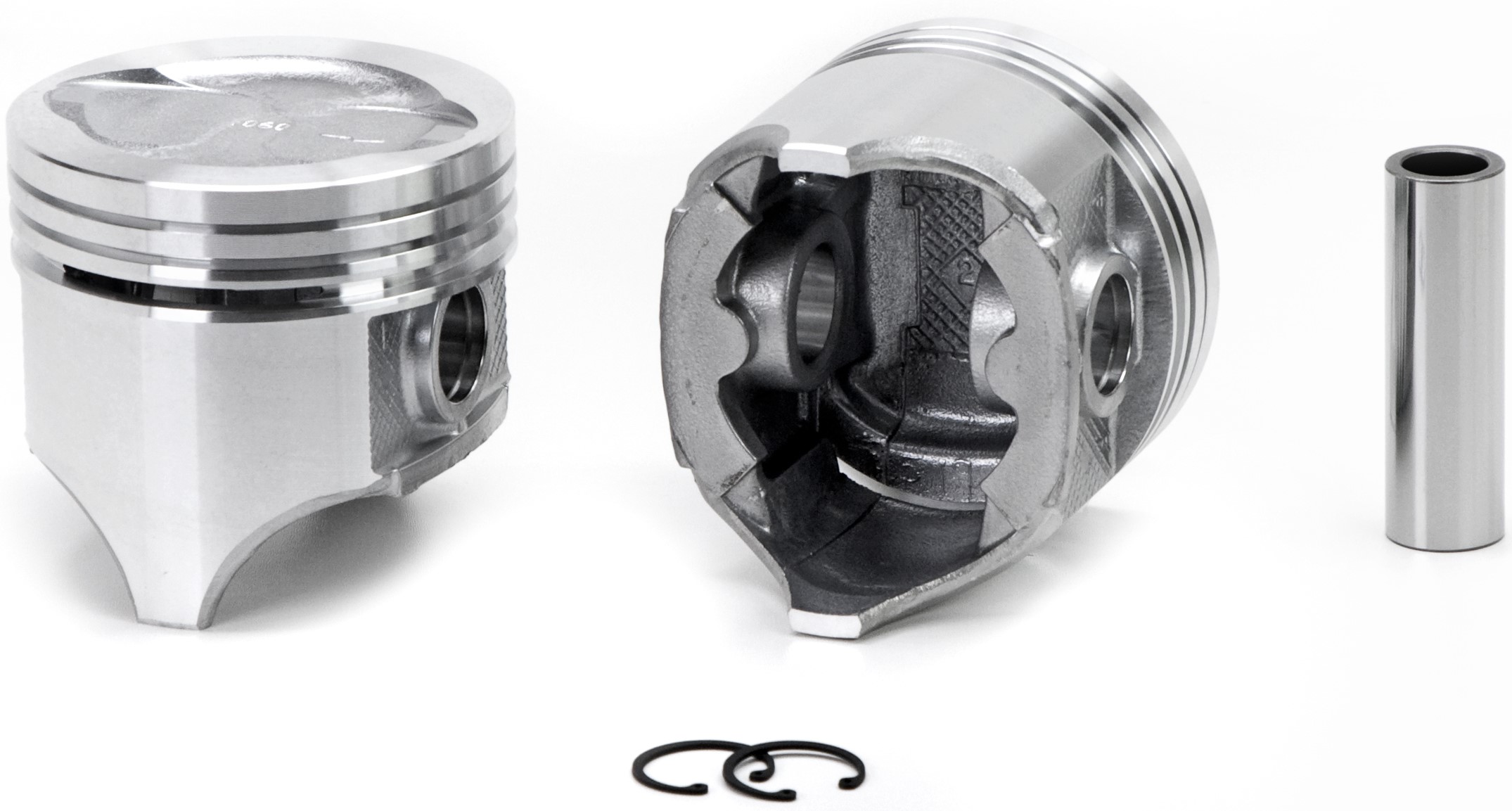

Sold As Complete Piston Set
Engine Manufacturer Ford
Engine Family Ford Big Block FE
Eng. Disp. In. 390
Year Range 1966-1970
Piston Material Cast 332 Alloy
Oe Assembly C6AZ6108A, C6MY6108K, C6AZ6108AG-AH
Bore Diameter MM 102.9
Bore (in) 4.05
Bore (mm) 102.9
Oversized Yes
Oversize .030
Ring Pack 5/64, 3/32, 3/16
Top Land .307
Pin Number 0975x305A
Pin Type Floating
Pin Configuration Offset
Lock 98
Compression Height IN 1.76
Compression Height MM 44.7
Crown Type DISH
Crown (cc) +19cc
Compression Ratio 9.5
Oversizes STD .020 .030 .040 .060 .080
