UEM Pistons

Engine Piston Kit | IC10070-STDK1

94mm Bore Type 1 VW, Anodized crown, top land and 1st groove, M42 Skirt Coating, .060" Offset Pin Bore

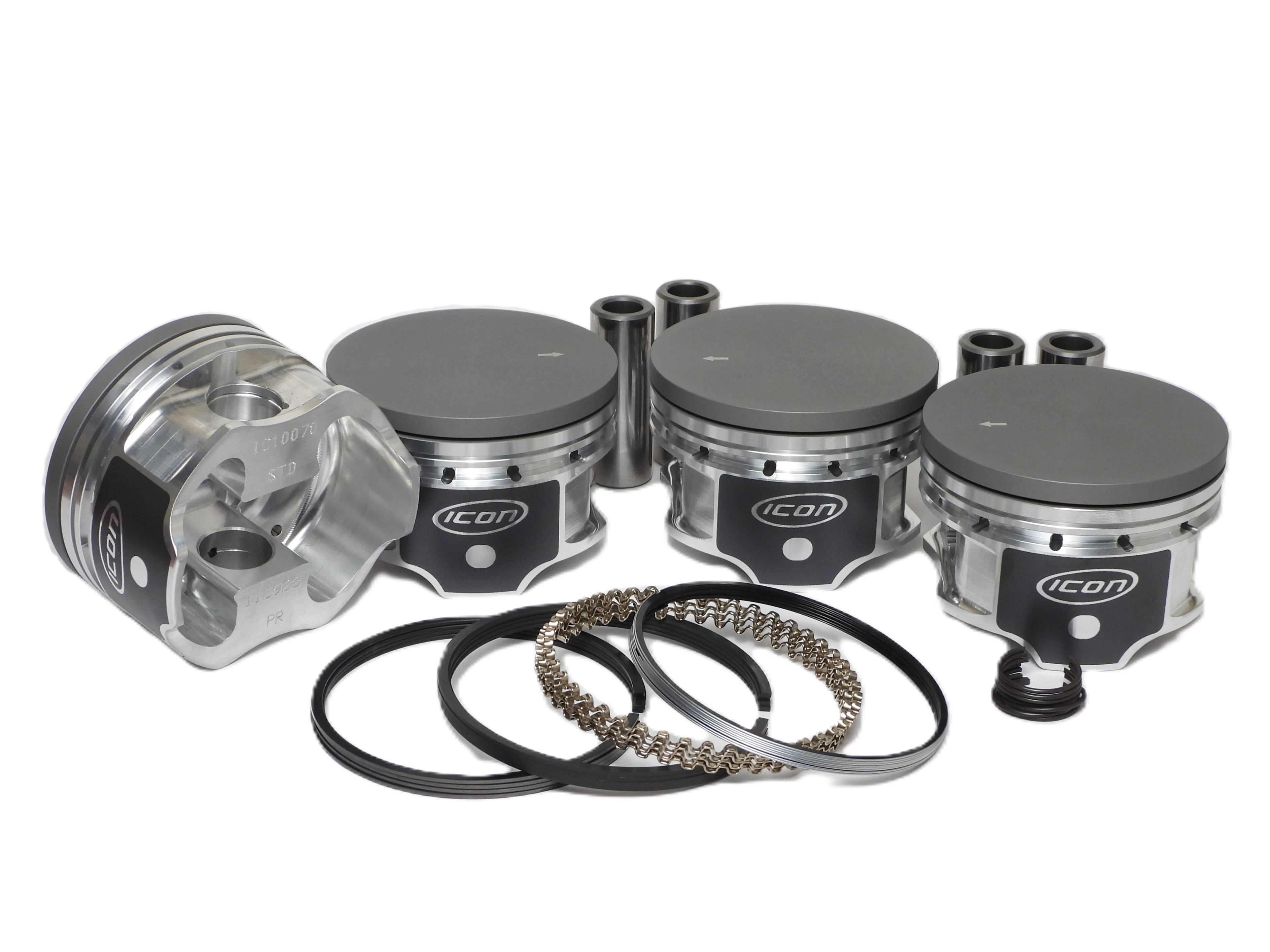

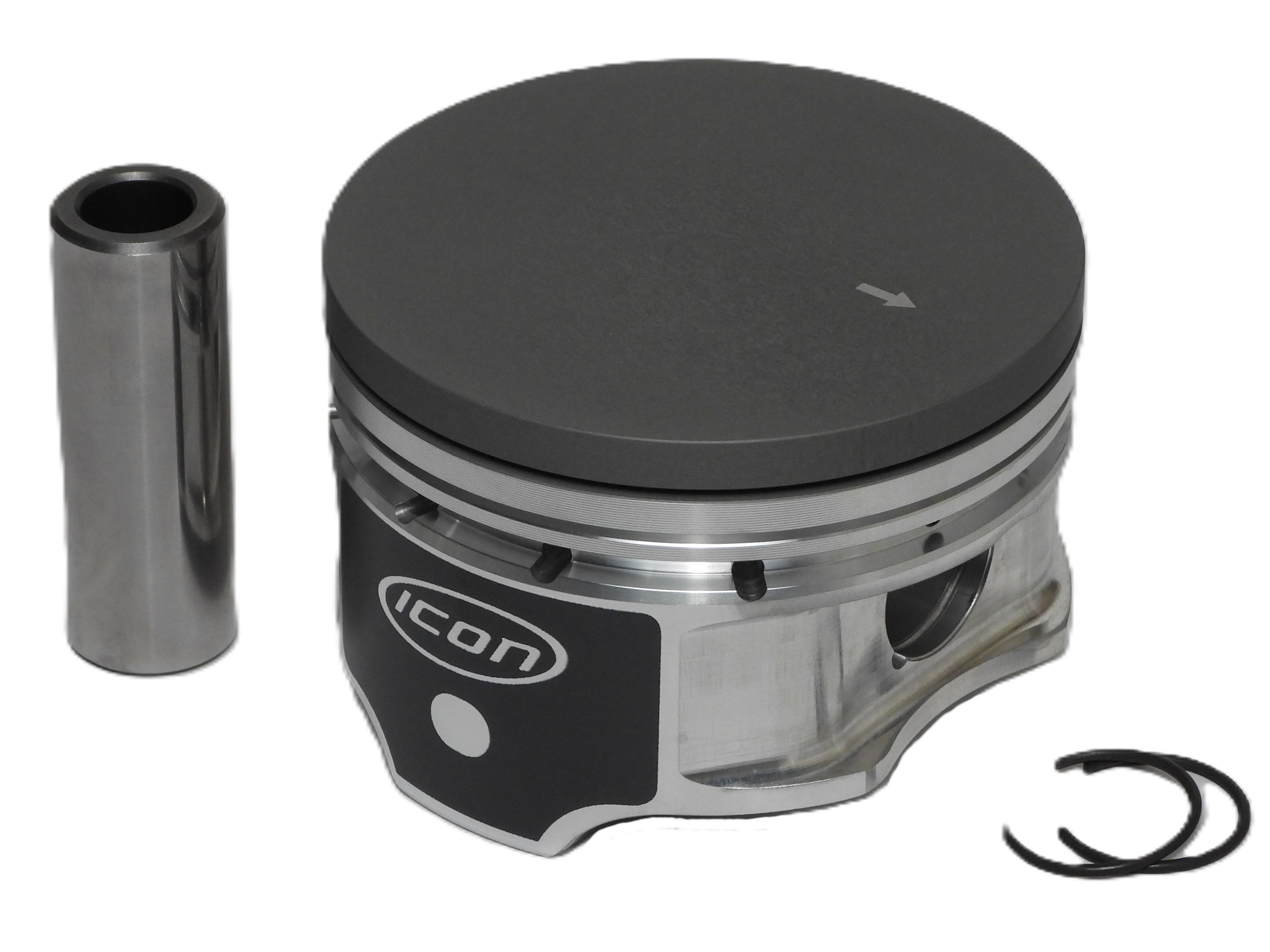

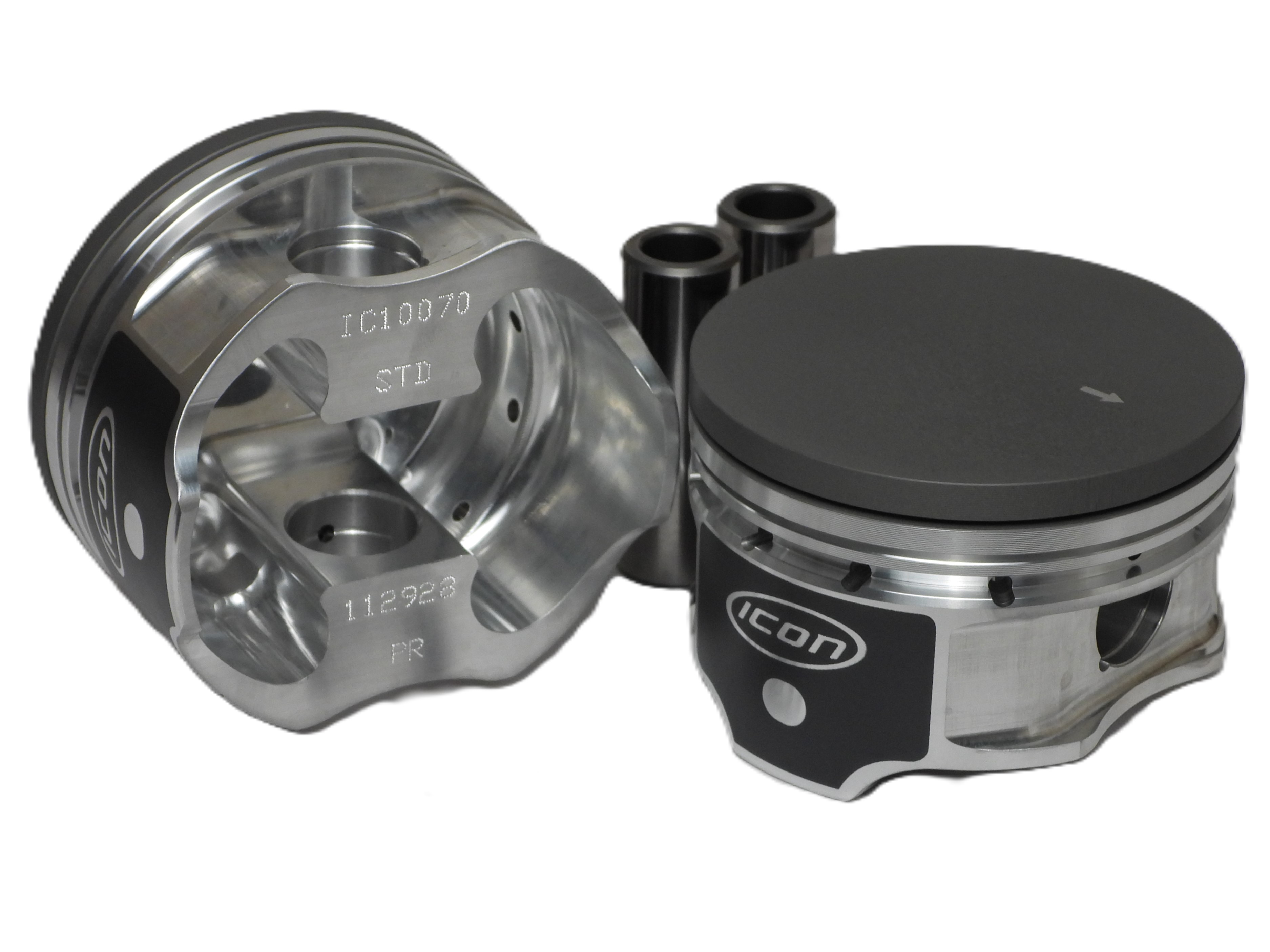

ICON Piston - VW 94mm Big Bore (H4) Kit with Rings

PDF Documents

Icon4032_Ins.pdf

Installation Instruction

Specifications
Buyer's Guide

Product Specifications

Sold As	Complete Piston and Ring Kit
Engine Manufacturer	Volkswagen
Engine Family	Type 1 H4
Year Range	1965-1974
Bore Diameter IN	3.700
Bore Diameter MM	94.00
Eng. Disp. Liters	2.180-2.332
Oversized	Yes
Oversizes	STD
Rod (in)	5.394
Rod (mm)	137
Oe Deck Height	3.950
Compression Height IN	1.378
Compression Height MM	35.00
Crown (cc)	0
Pin Type	Floating

Pin Diameter (in)	0.866
Pin Diameter (mm)	21.99
Piston Material	Forged 4032 Alloy
Top Land	.270
Includes Ring Set	3700DD4.STD
Stroke (in)	3.086-3.307
Stroke (mm)	78.4-84
Compression Height IN	1.378
Eng. Disp. In.	133-142
Oversize	STD
Pin Number	.8660X2.500X.160C-SCR415H
Pin Configuration	Offset
Lock	RRN-86
Crown Type	Flat
Alloy	Forged 4032 Alloy
Ring Pack	1.5, 1.5, 4.0mm
