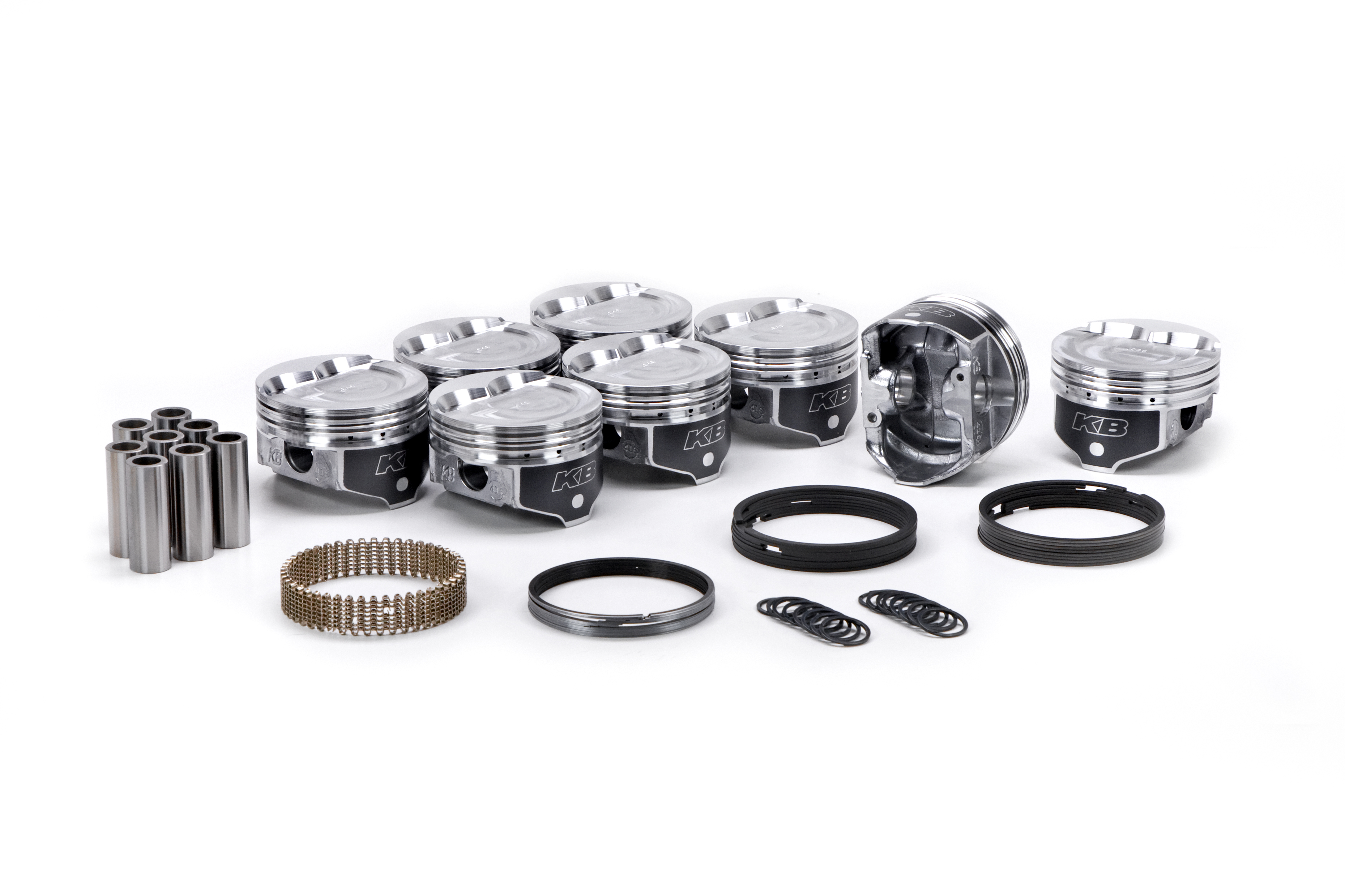

Engine Piston Set | KB416.030

Centered pin. Can be used with Magnum rod, small end narrowed to 1". Made with Chrysler 360 block. Use with closed chamber heads, no quench dome.

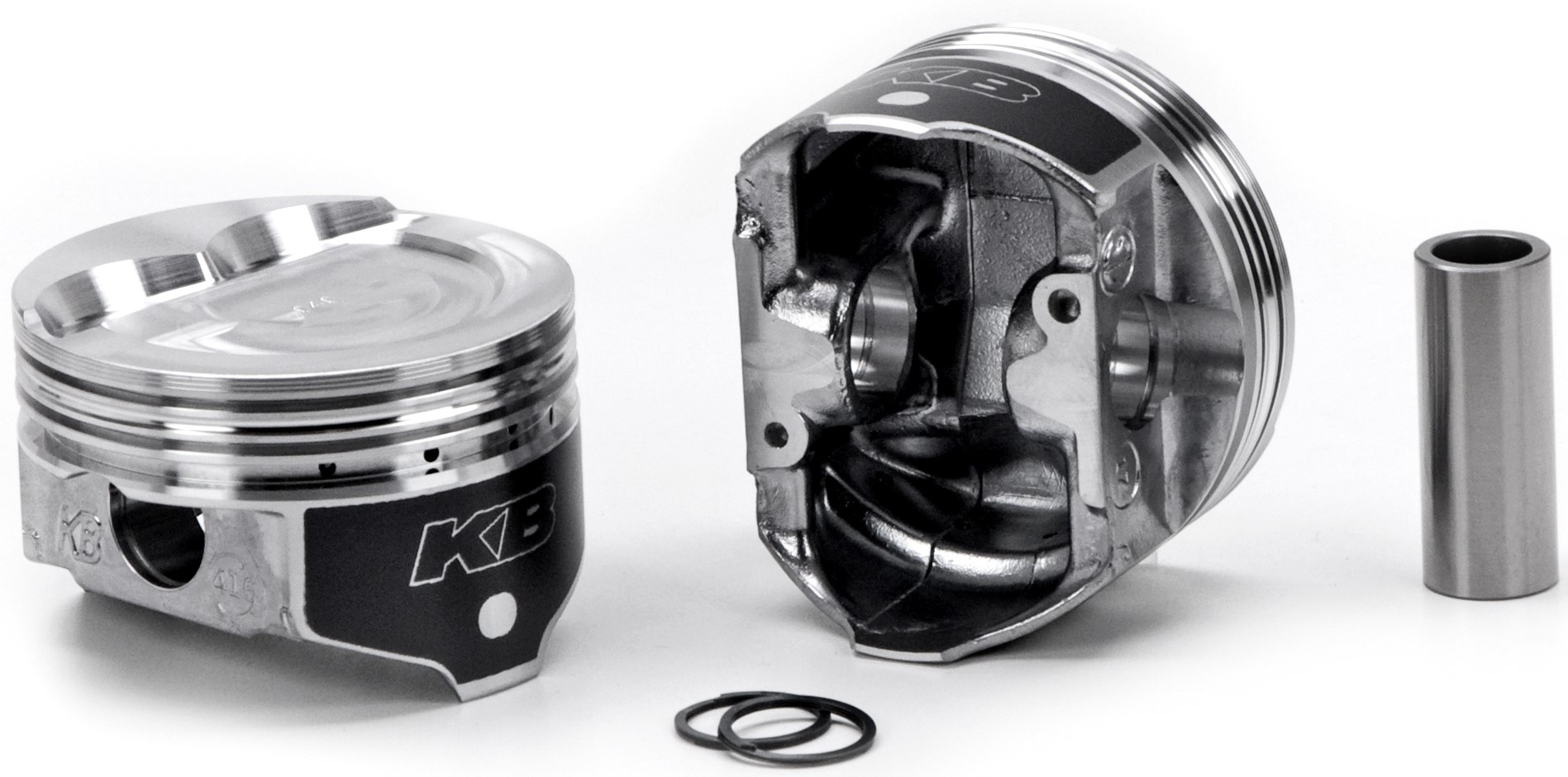

KB Hyper Piston - Chry 408 Rod 6.123 Step Dish +23.5cc 2V No Quench Dome

PDF Documents
KB_Automotive_Installation_Instructions.pdf pdf Installation Instruction

Also Available...

Product Specifications
Sold As PISTON SET
Engine Manufacturer Chrysler
Engine Family Mopar Small Block Magnum
Eng. Disp. In. 408
Eng. Disp Liters 6.7
Year Range 1959-2010
Piston Material Cast 390 Hypereutectic Alloy
Bore (in) 4
Bore (mm) 101.6
Rod (in) 6.123
Stroke (in) 4.000
Rod (mm) 155.5242
Stroke (mm) 101.6
Oversized Yes
Oversize .030
Ring Pack 5/64, 5/64, 3/16
Top Land .275
Pin Number 0984x216K
Pin Type Press or Floating
Pin Configuration Centered
Pin Diameter (in) .984
Pin Diameter (mm) 25.0
Lock PRH107-3
Compression Height IN 1.465
Compression Height MM 37.2
Crown Type STEP DISH 2v
Crown (cc) +25.0cc
Intake Valve Depth/diameter .286/2.200
Exhaust Valve Depth/diameter .286/2.200
Alloy 390
Compression Ratio 62-9.8, 64-9.6, 68-9.2, 72-8.9
Oe Deck Height 9.599
Oversizes STD .020 .030 .040 .060 .070 .080
