UEM Pistons

Engine Piston Kit | IC10077-STDK1

94mm Bore Type 1 VW, Anodized crown, top land and 1st groove, M42 Skirt Coating, .060" Offset Pin Bore

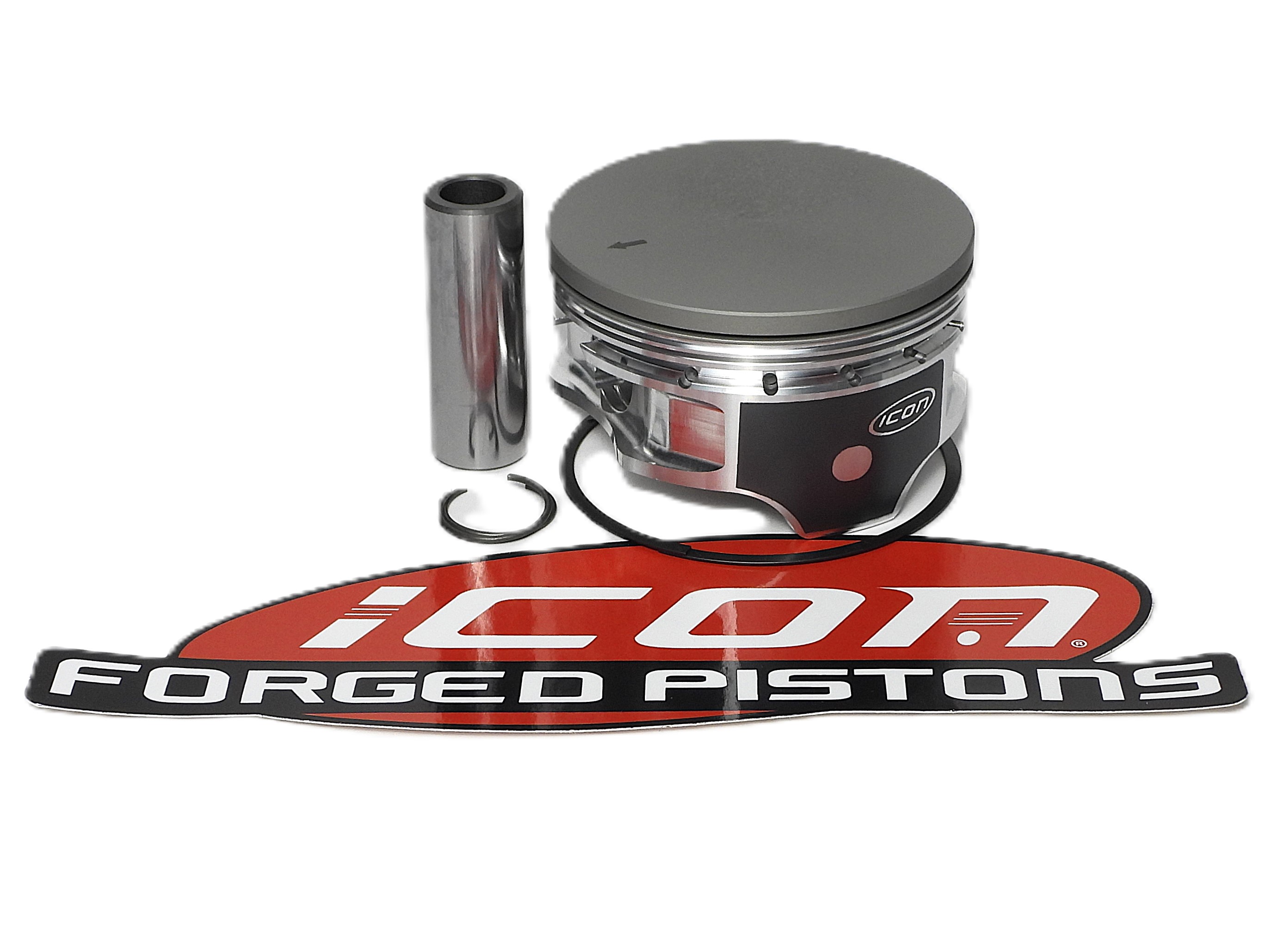

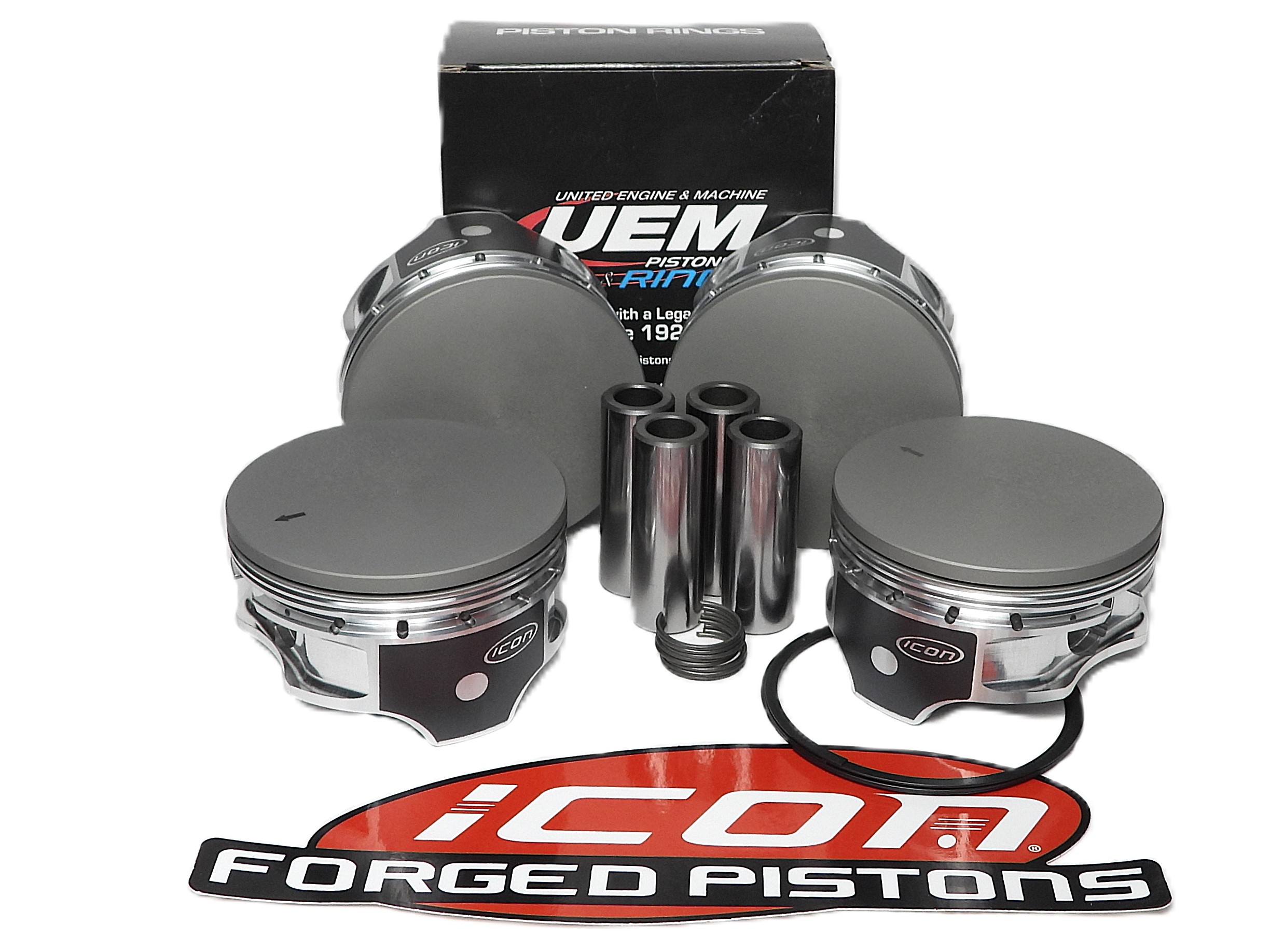

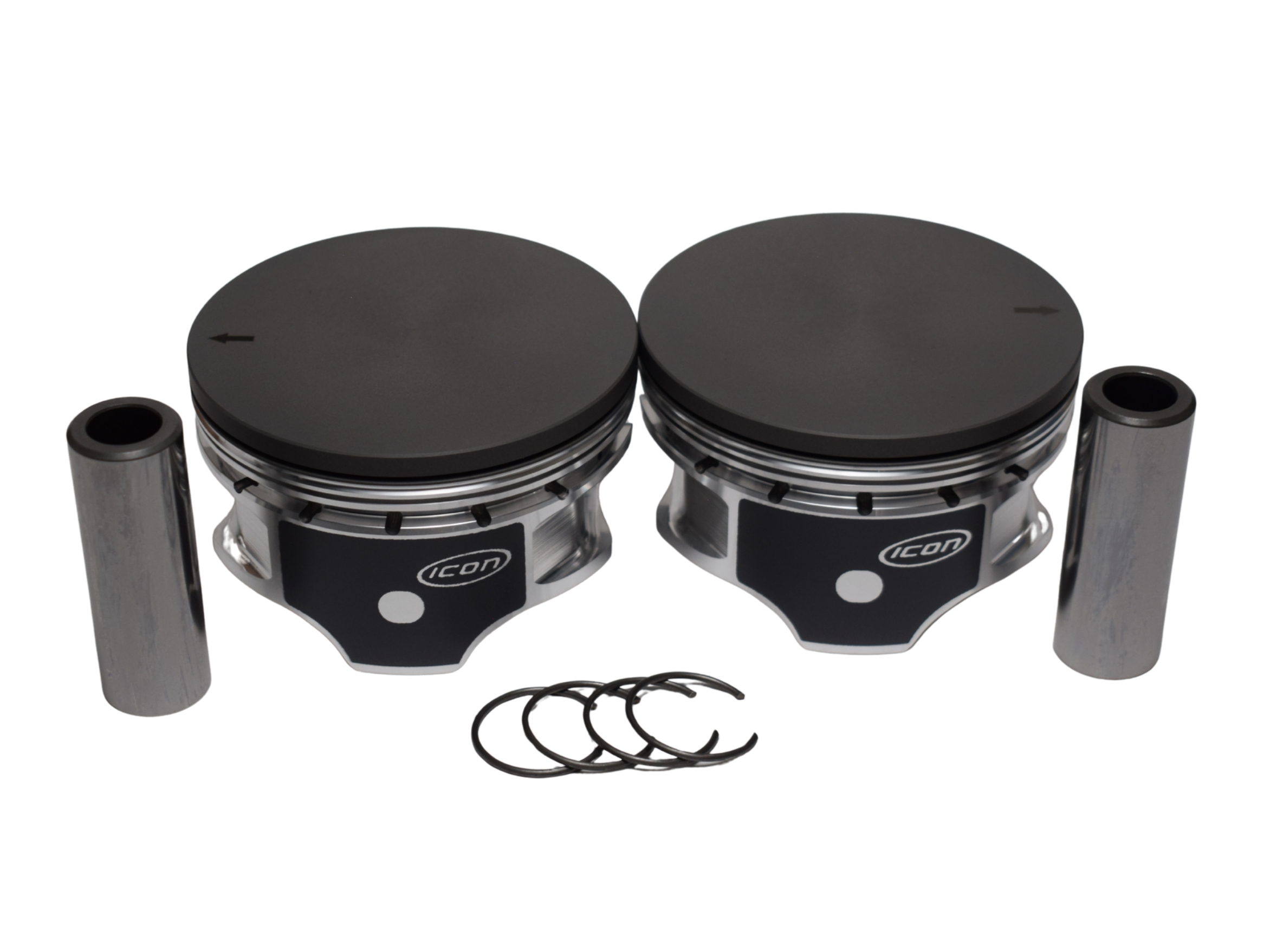

ICON Forged Piston Kit - VW Type 1 H4 94mm Big Bore with Rings

PDF Documents

Icon4032_Ins.pdf

Installation Instruction

Specifications
Buyer's Guide

Product Specifications

Sold As	Complete Piston and Ring Kit
Engine Manufacturer	Volkswagen
Engine Family	Type 1 H4
Year Range	1965-1974
Bore Diameter IN	3.700
Bore Diameter MM	94.00
Eng. Disp. Liters	2.387
Oversized	Yes
Oversizes	STD
Rod (in)	5.394
Rod (mm)	137
Oe Deck Height	3.950
Compression Height in	1.055
Compression Height mm	26.79
Crown (cc)	0
Pin Type	Floating

Pin Diameter (in)	0.866
Pin Diameter (mm)	21.99
Piston Material	Forged 4032 Alloy
Top Land	.200
Includes Ring Set	U09400ES
Stroke (in)	3.385
Stroke (mm)	86
Compression Height in	1.055
Eng. Disp. In.	146
Oversize	STD
Pin Number	.8660X2.500X.160C-SCR415H
Pin Configuration	Offset
Lock	SRW-004
Crown Type	Flat
Alloy	Forged 4032 Alloy
Ring Pack	1.2, 1.2, 3.0mm
