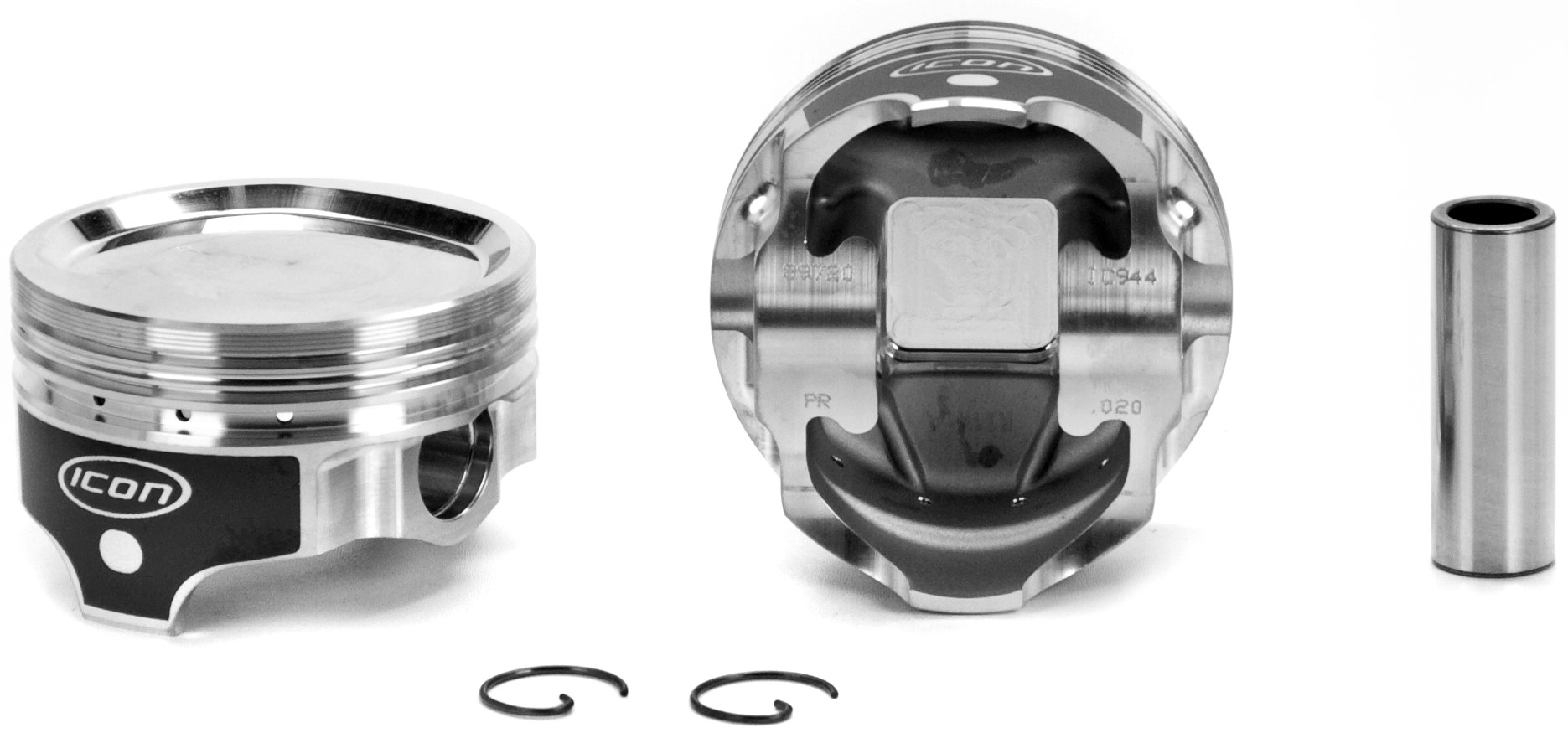

Engine Piston Set | IC10181-.030

4.0L Stroker, Requires 4.0L block and rods and 258 (3.895" Stroke) crank. 4032 Forged Alloy. Metric Ring Pack. Press fit pin. +.010" Compression Height. 9.6:1c/r

Icon FHR Piston Set - AMC/Jeep 4.0L I6 Stroker -4.6L w/ 258" Crank 9.6:1c/r

PDF Documents
Icon4032_Ins.pdf pdf Installation Instruction

Product Specifications
Sold As Complete Piston Set
Engine Manufacturer AMC
Engine Family I6
Eng. Disp. In. 276
Piston Material Forged 4032 Alloy
Year Range 1984-2006
Vin Code S
Bore Diameter MM 98.4
Bore (in) 3.875
Bore (mm) 98.42
Rod (in) 6.123
Stroke (in) 3.895
Rod (mm) 155.52
Stroke (mm) 98.93
Oversized Yes
Oversize .030"
Ring Pack 1.5, 1.5, 4.0MM
Top Land 0.280"
Pin Number 0931X222A
Pin Type Floating
Pin Configuration Offset
Pin Diameter (in) 0.931
Pin Diameter (mm) 23.65
Lock SRW-012
Compression Height IN 1.363
Compression Height MM 34.62
Crown Type Dish
Crown (cc) 22
Alloy Forged 4032 Alloy
Compression Ratio 9.6:1
Oe Deck Height 9.45
Oversizes .020, .030, .040, .060
