Engine Piston Set | IC9993C.005

.030" offset pin. Right and left bank pistons. Fits 15 degree valve angle heads. Use LS1, LS6 type block.

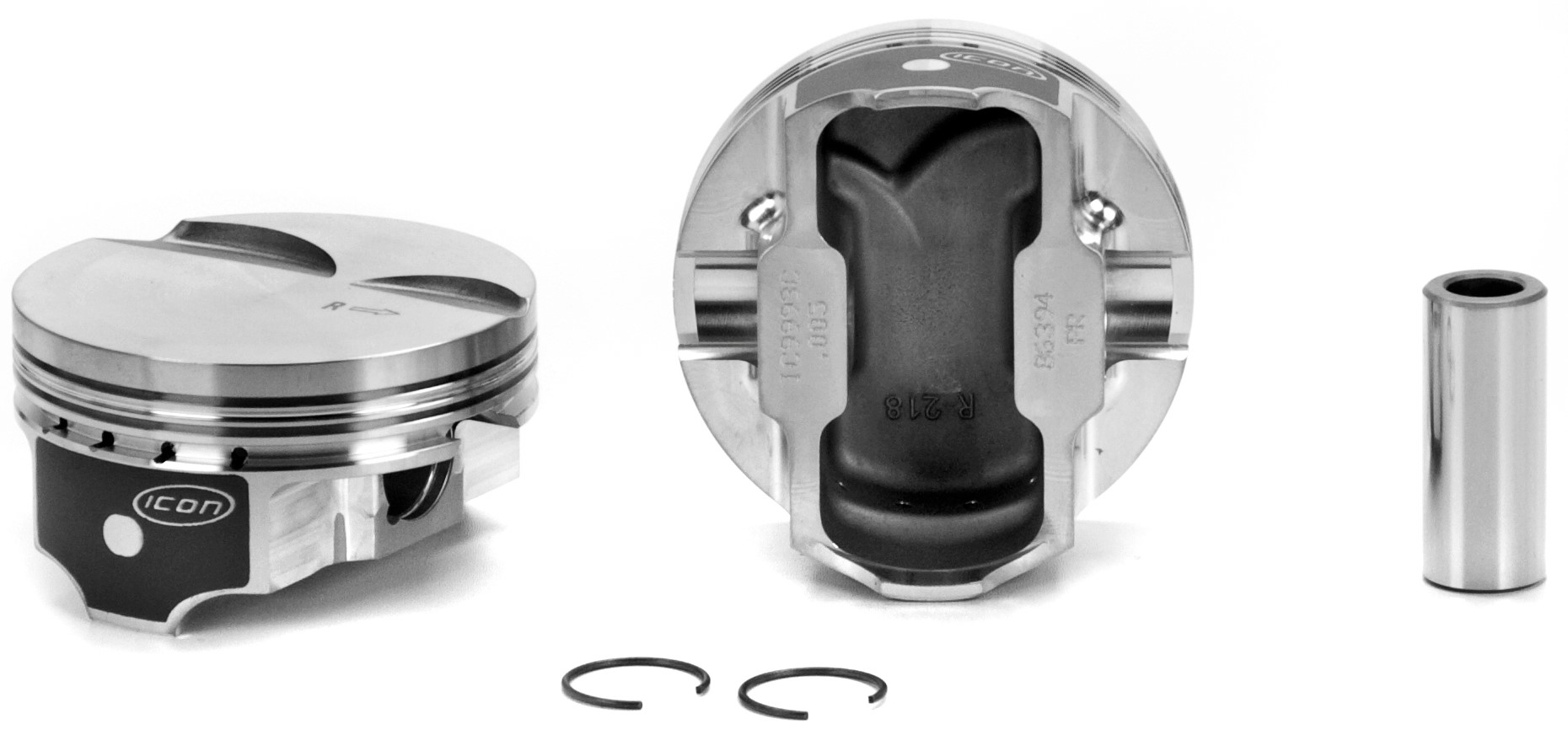

Icon Forged Piston Set - GM LS1, LS6 5.7L w/4.00" stroke, 6cc Dish

PDF Documents
Icon2618_Ins.pdf pdf Installation Instruction

Also Available...

Product Specifications

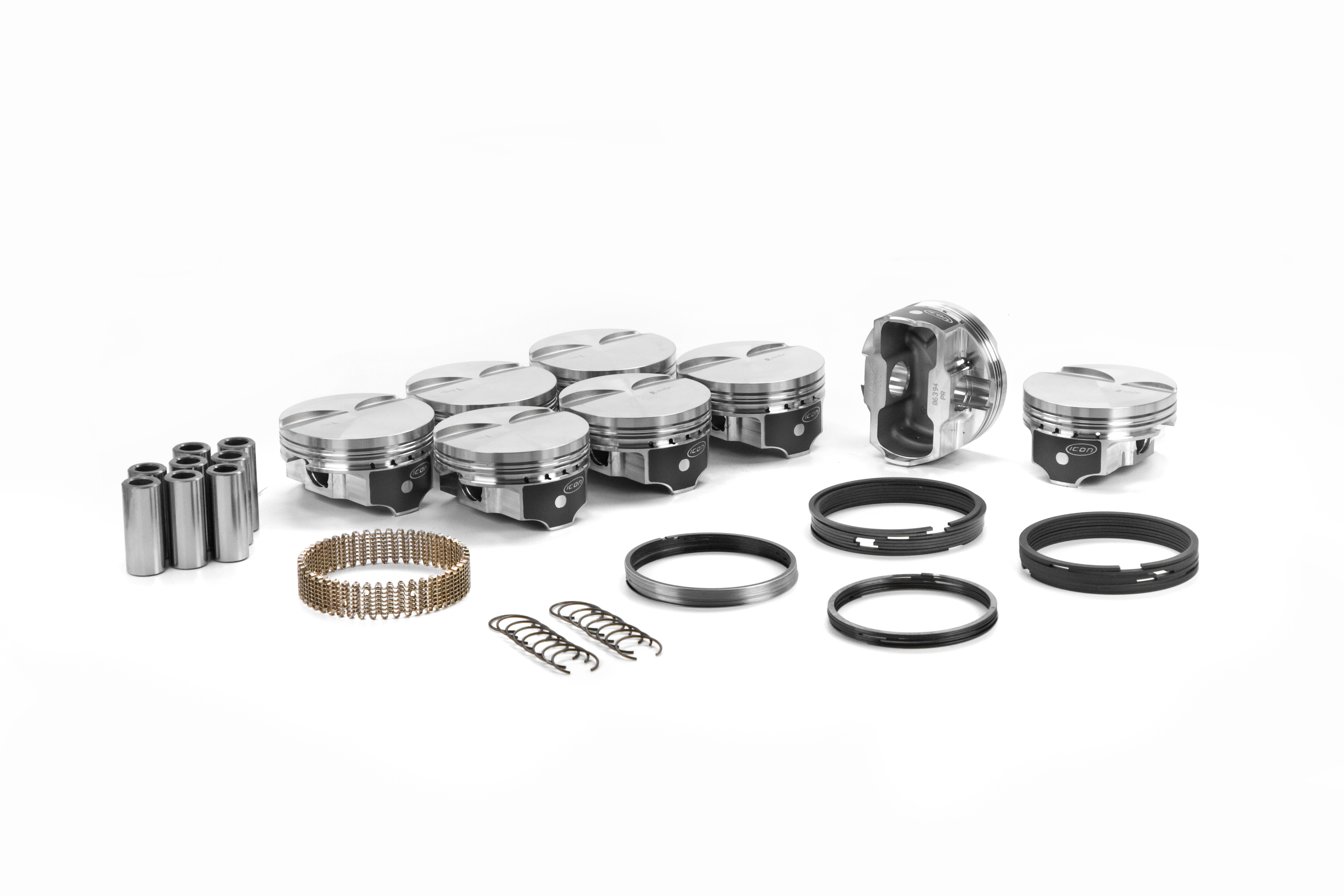

Sold As Complete Piston Set
Engine Manufacturer GM
Engine Family Chevrolet SB V8 Gen III/IV (LS1/LS6 5.7L Block)
Eng. Disp. In. 383
Eng. Disp Liters 6.3
Piston Material Forged 2618 Alloy
Bore Diameter MM 99.0
Bore (in) 3.898
Bore (mm) 99
Rod (in) 6.125
Stroke (in) 4.000
Rod (mm) 155.600
Stroke (mm) 101.6
Oversized Yes
Oversize .005
Ring Pack 1.5mm, 1.5mm, 3.0mm
Top Land .265
Pin Number .9270x2.250x.180C-SCR415H
Pin Type Press or Floating
Pin Configuration Offset
Pin Diameter (in) .927
Pin Diameter (mm) 23.5
Compression Height IN 1.115
Compression Height MM 28.3
Crown Type DISH 2V
Crown (cc) +6cc
Alloy 4032
Alloy Forged 4032 Alloy
Oe Deck Height 9.240
Oversizes .005 .010
