Part Search
Product Details
Brand

Engine Piston Set | 1412.STD

  • Flat top.
  • 4 valve reliefs.

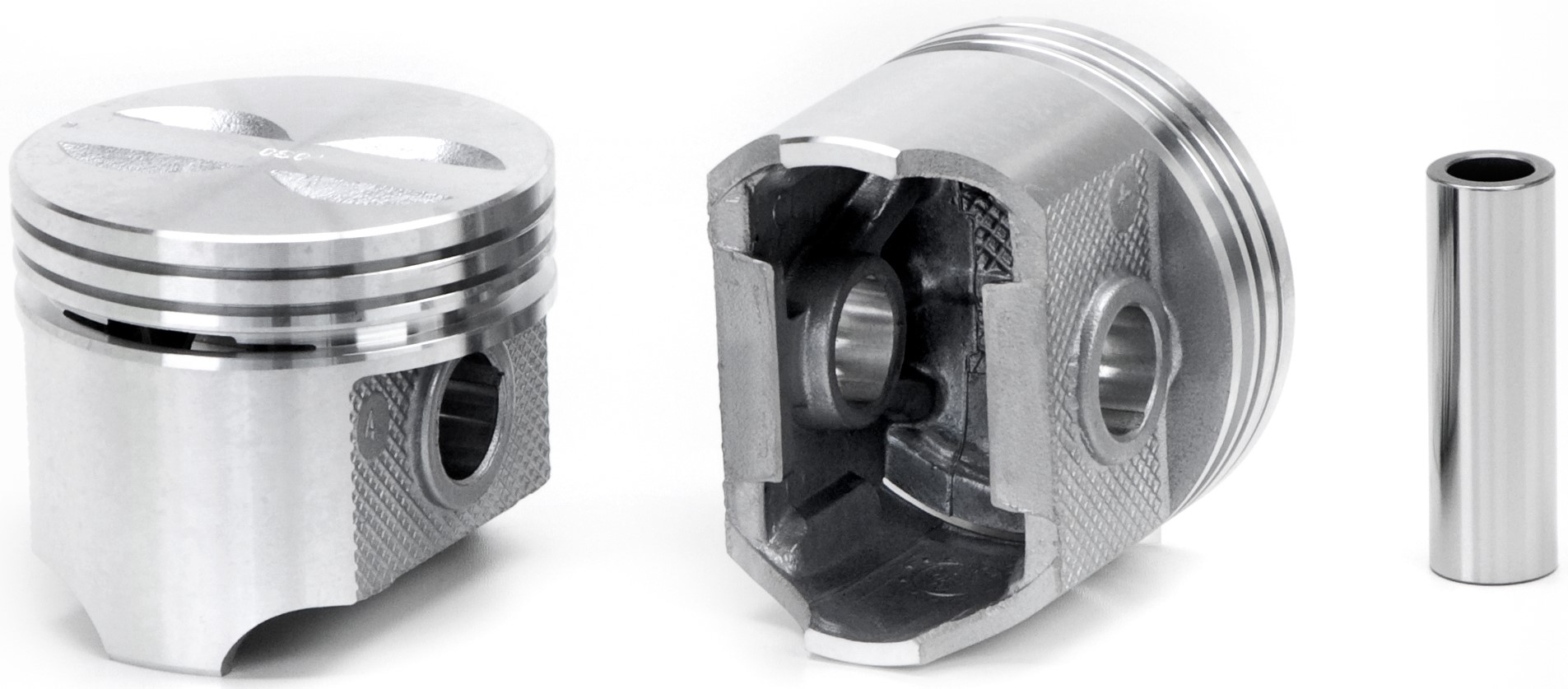

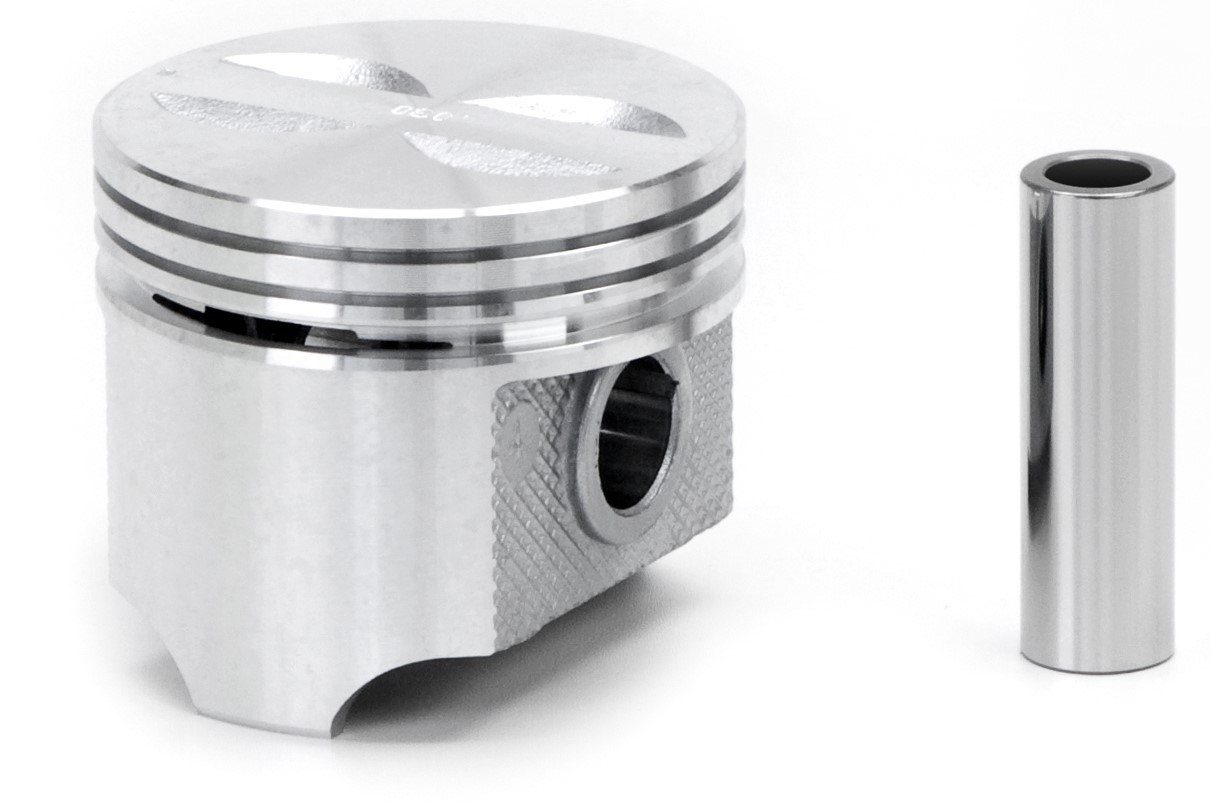

Silv-O-Lite Piston - GM 283ci/4.6L (V8)

PDF Documents
SIL_Instruc.pdf pdf Installation Instruction

Also Available...

Product Specifications
Sold As Complete Piston Set
Engine Manufacturer GM
Engine Family Chevy Small Block Gen I
Eng. Disp. In. 283
Eng. Disp Liters 4.6
Year Range 1957-1970
Piston Material Cast 332 Alloy
Oe Assembly 3739886, 3840148 , 3860407
Bore Diameter MM 98.4
Bore (in) 3.875
Bore (mm) 98.4
Oversized No
Oversize STD
Ring Pack 5/64, 5/64, 3/16
Top Land .230
Pin Number 0927x300A
Pin Type Press
Pin Configuration Offset
Compression Height IN 1.779
Compression Height MM 45.2
Crown Type FLAT TOP
Crown (cc) +3cc
Compression Ratio 8.3
Oversizes STD .020 .030 .040 .060 .080
