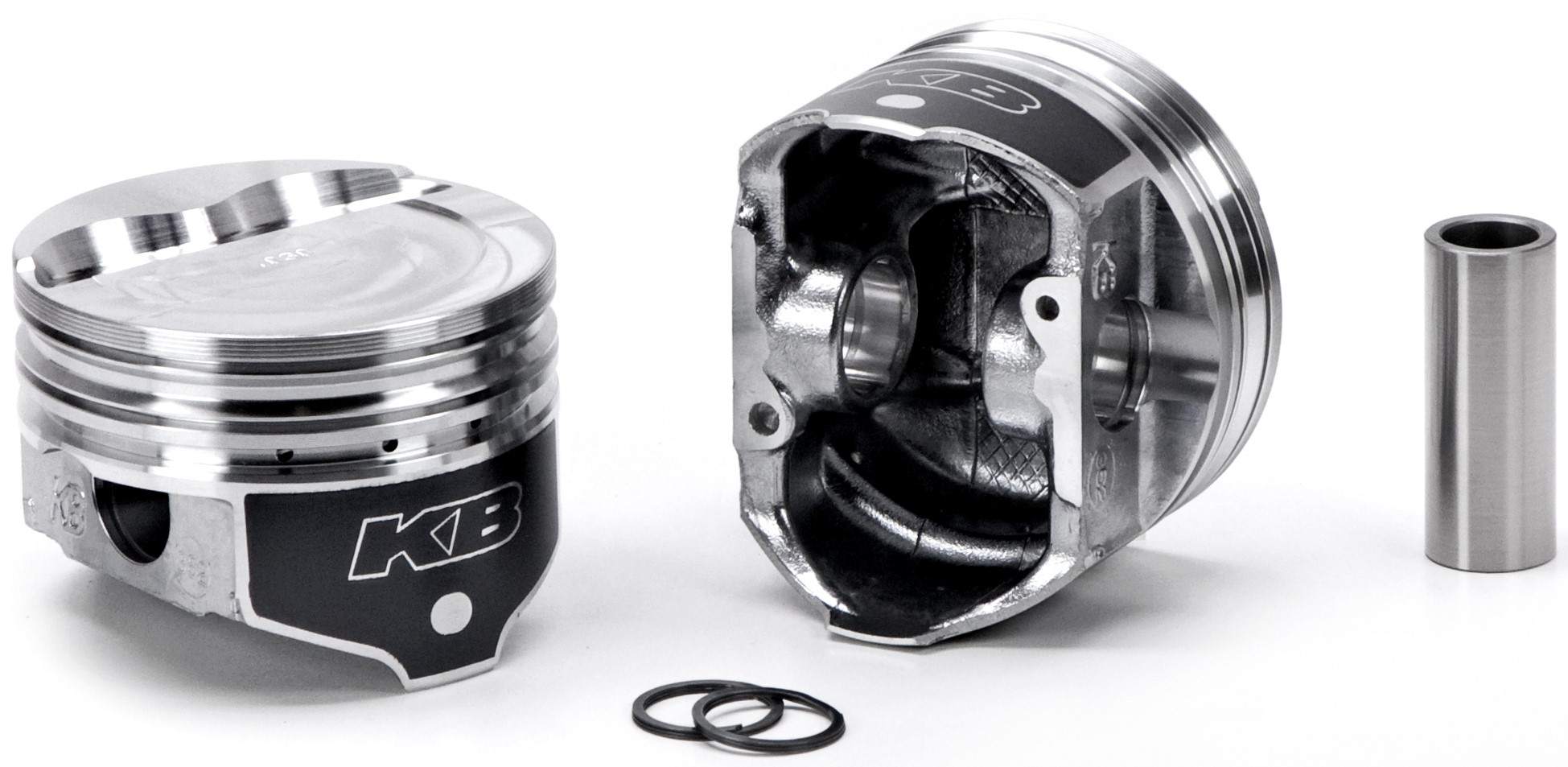

Engine Piston Set | KB362.030

Centered pin. Piston may protrude on 1992 and up Magnum truck blocks. Magnum rod must be narrowed to 1".

KB Hyper Piston - Chry 360 Rod 6.123 Step Dish +19.4cc 2V

PDF Documents
KB_Automotive_Installation_Instructions.pdf pdf Installation Instruction

Also Available...

Product Specifications

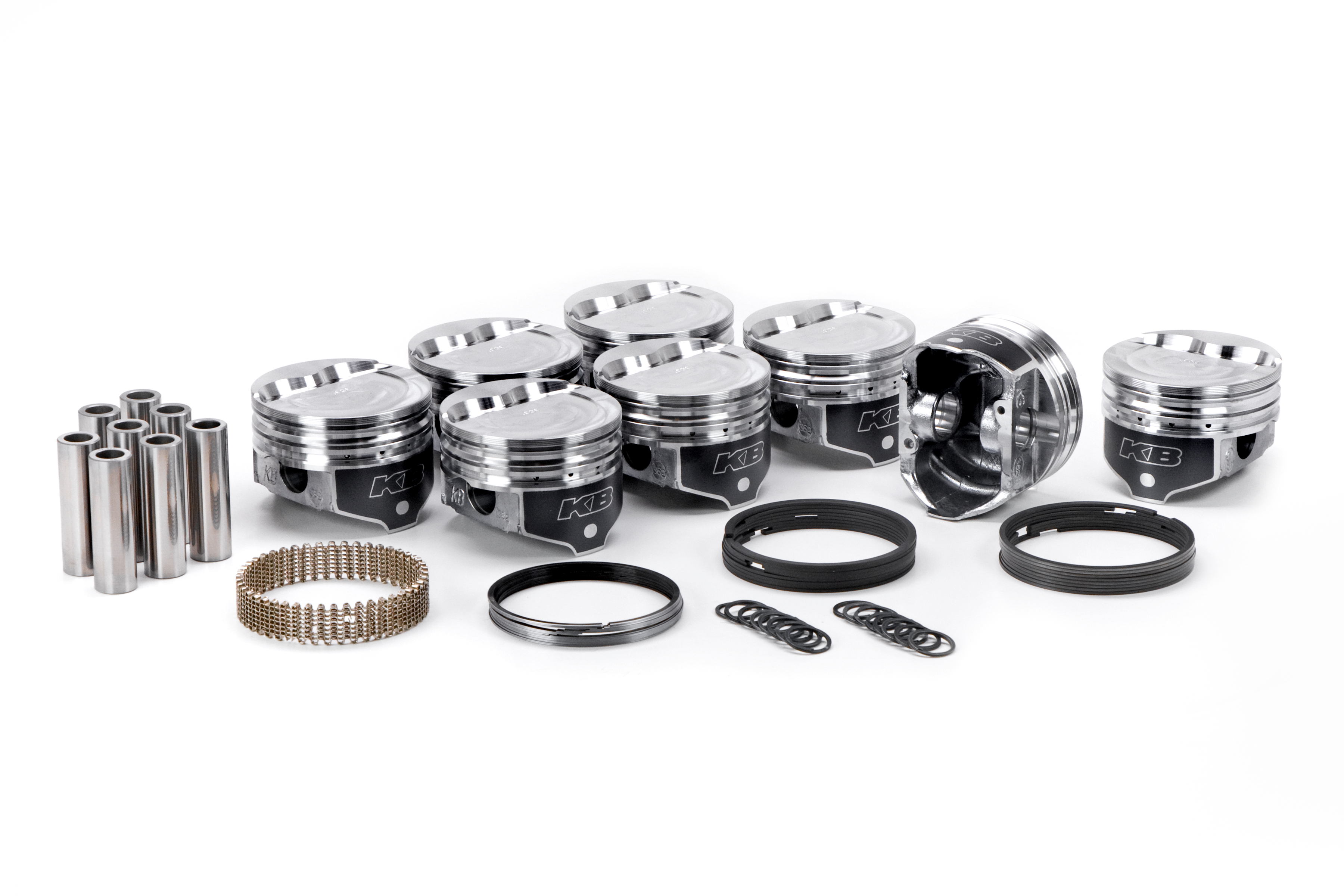

Sold As PISTON SET
Engine Manufacturer Chrysler
Engine Family Mopar Small Block LA
Eng. Disp. In. 360
Eng. Disp Liters 5.9
Year Range 1958-2009
Piston Material Cast 390 Hypereutectic Alloy
Bore (in) 4
Bore (mm) 101.6
Rod (in) 6.123
Stroke (in) 3.58
Rod (mm) 155.5242
Stroke (mm) 90.9
Oversized Yes
Oversize .030
Ring Pack 5/64, 5/64, 3/16
Top Land .275
Pin Number 0984x216K
Pin Type Press or Floating
Pin Configuration Centered
Pin Diameter (in) .984
Pin Diameter (mm) 25.0
Lock PRH107-3
Compression Height IN 1.675
Compression Height MM 42.5
Crown Type STEP DISH 2V
Crown (cc) +19.4cc
Intake Valve Depth/diameter .280/2.160
Exhaust Valve Depth/diameter .280/2.160
Alloy 390
Compression Ratio 59-9.5, 61-9.4, 64-9.1
Oe Deck Height 9.599
Oversizes STD .020 .030 .040 .060
