Engine Piston Set | IC9926.030

Superseded to IC10011-.030

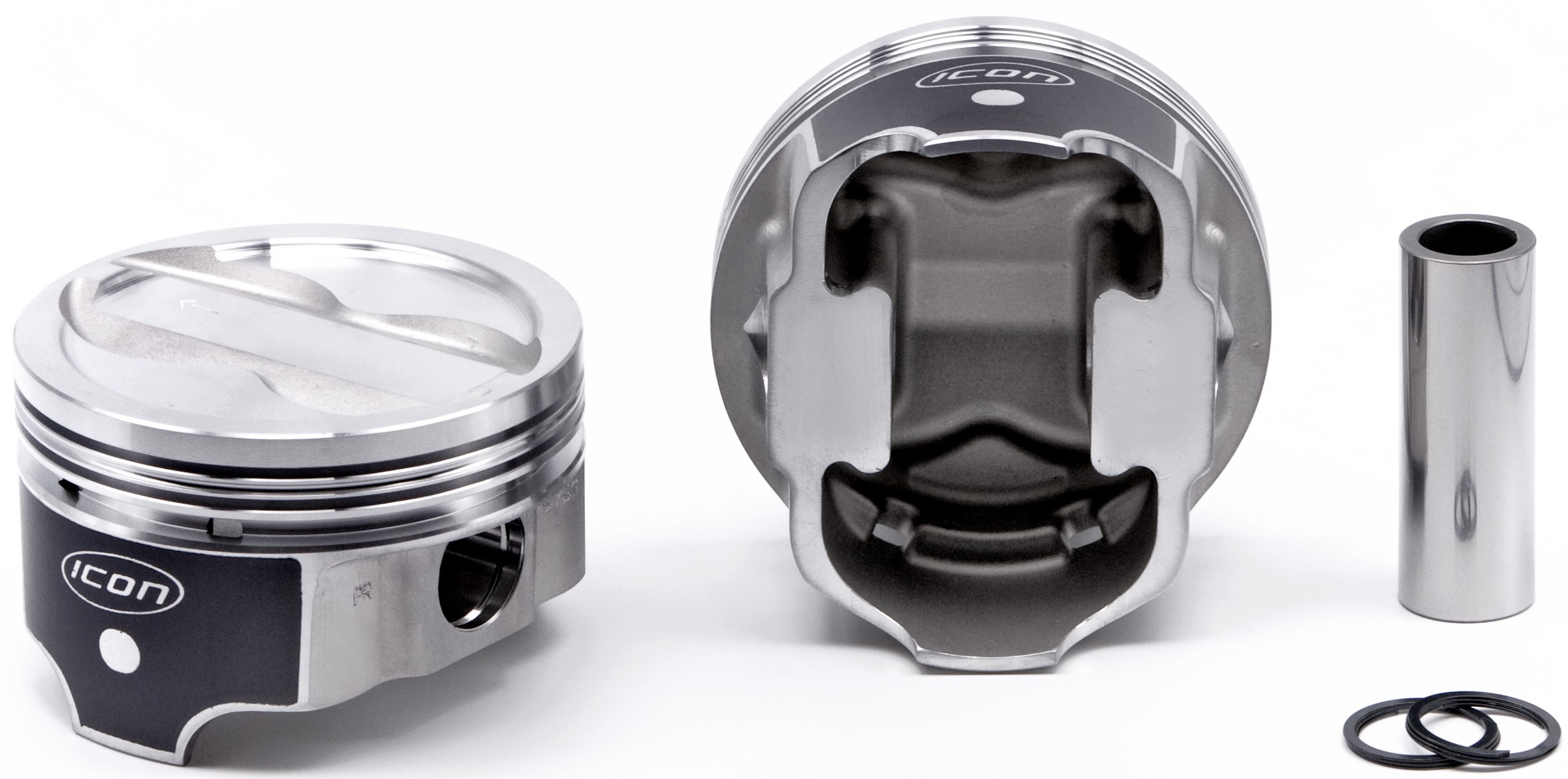

ICON FHR Piston - Chevy 383, Rod 5.700, Dish +18cc 2V

PDF Documents
Icon4032_Ins.pdf pdf Installation Instruction

Also Available...

Product Specifications

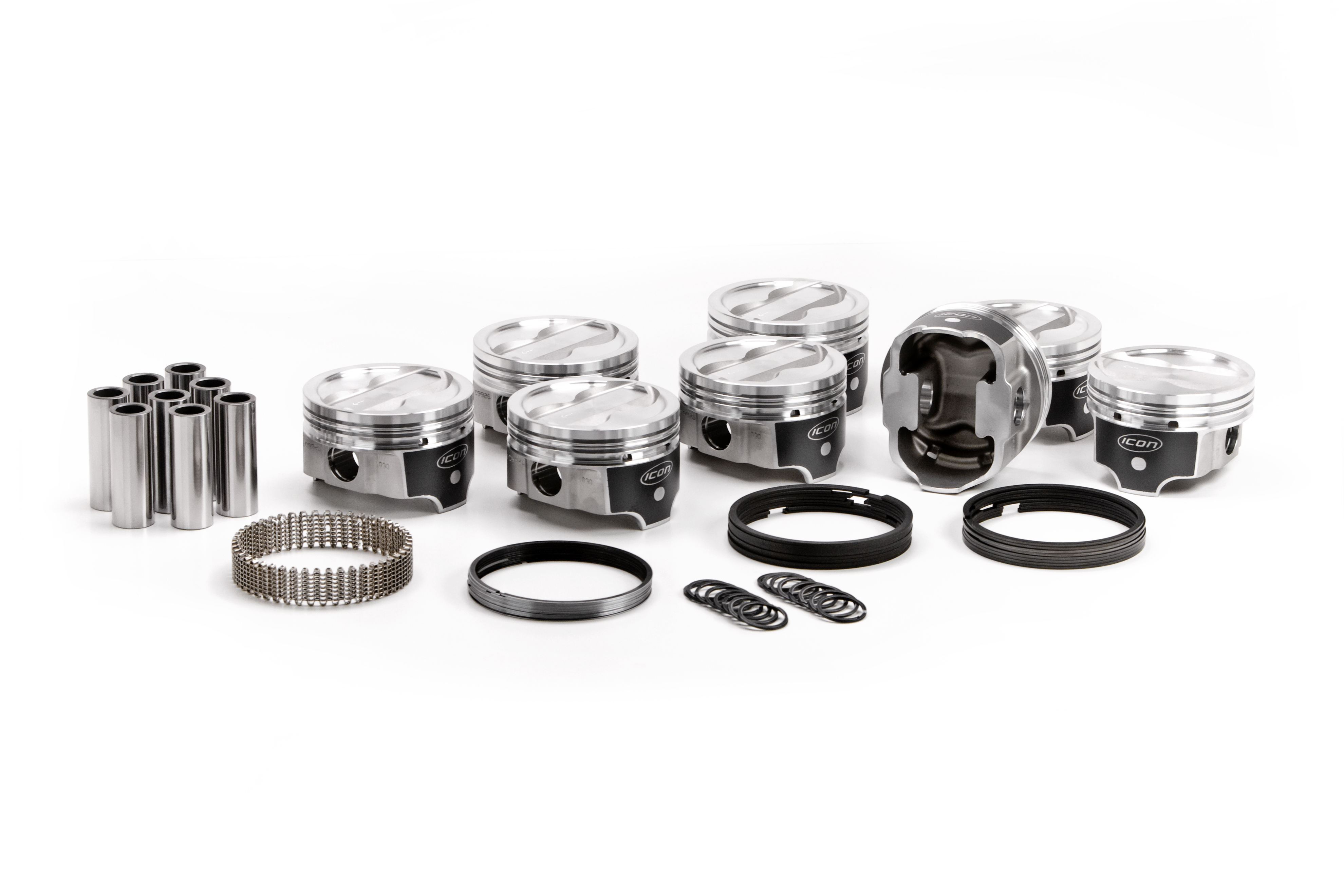

Sold As Complete Piston Set
Engine Manufacturer GM
Engine Family Chevrolet SB V8 Gen I
Eng. Disp. In. 383
Eng. Disp Liters 6.3
Year Range -
Piston Material Forged 4032 Alloy
Bore (in) 4
Bore (mm) 101.6
Rod (in) 5.7
Stroke (in) 3.75
Rod (mm) 144.78
Stroke (mm) 95.3
Oversized Yes
Oversize .030
Ring Pack 5/64, 5/64, 3/16
Top Land .250
Pin Number .927x2.750
Pin Type Press or Floating
Pin Configuration Offset
Pin Diameter (in) .927
Pin Diameter (mm) 23.5
Lock PRJ100-3
Compression Height IN 1.425
Compression Height MM 36.2
Crown Type DISH 4V
Crown (cc) +18cc
Alloy 4032
Alloy Forged 4032 Alloy
Compression Ratio 58-10.2, 64-9.6, 76-8.6
Oe Deck Height 9.025
Oversizes STD .005 .030 .040 .060 .080
