Engine Piston Set | KB399.020

    Centered pin..010" protrusion at 9.578" deck height.Does not work with 65cc Edelbrock heads

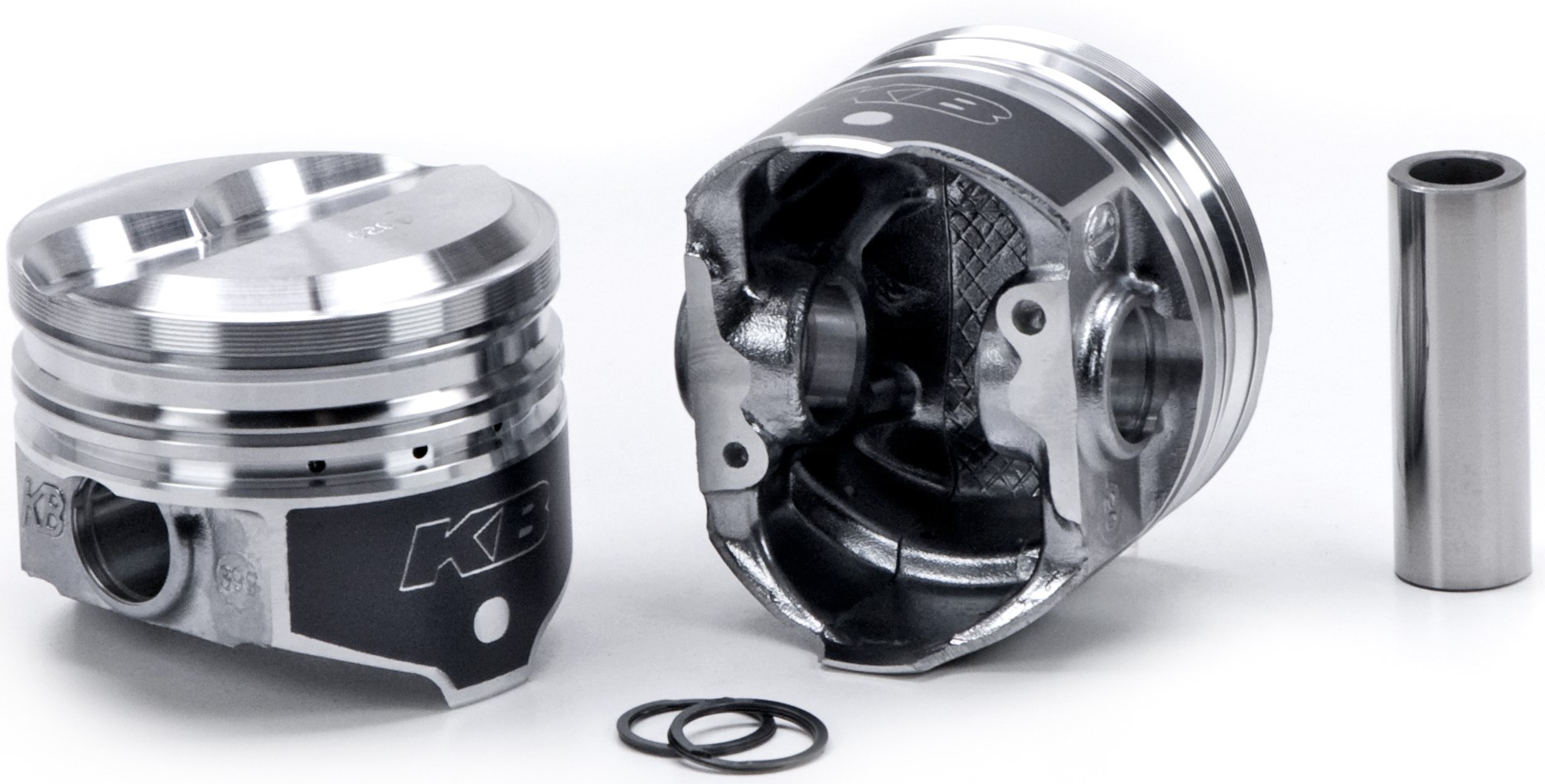

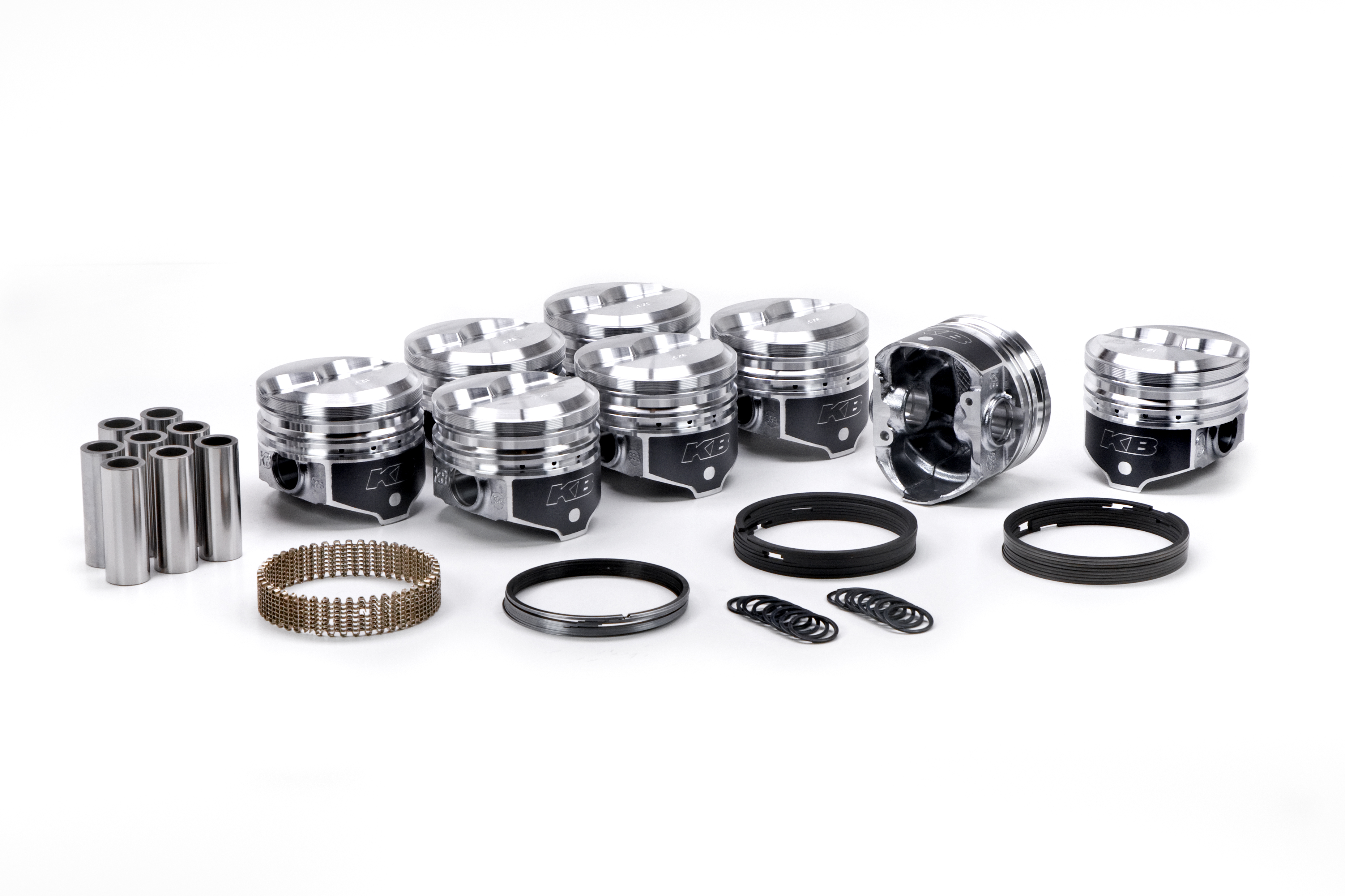

    KB Hyper Piston Set - Chry 318 V8 Solid Dome -6.44cc 2V

PDF Documents
KB_Automotive_Installation_Instructions.pdf pdf Installation Instruction

Also Available...

Product Specifications
Sold As PISTON SET
Engine Manufacturer Chrysler
Engine Family Mopar Small Block LA
Eng. Disp. In. 318
Eng. Disp Liters 5.2
Year Range 1957-2003
Piston Material Cast 390 Hypereutectic Alloy
Bore Diameter MM 99.3
Bore (in) 3.91
Bore (mm) 99.3
Rod (in) 6.123
Stroke (in) 3.31
Rod (mm) 155.5242
Stroke (mm) 84.1
Oversized Yes
Oversize .020
Ring Pack 5/64, 5/64, 3/16
Top Land .275
Pin Number 0984x300K
Pin Type Press or Floating
Pin Configuration Centered
Pin Diameter (in) .984
Pin Diameter (mm) 25.0
Lock PRH107-3
Compression Height IN 1.81
Compression Height MM 46
Crown Type .200" SOLID DOME 2V
Intake Valve Depth/diameter .286/2.200
Crown (cc) -6.44cc
Exhaust Valve Depth/diameter .286/2.200
Alloy 390
Compression Ratio 57-12.2, 60-11.7, 64-11.0, 68-10.4
Oe Deck Height 9.578
Oversizes STD .020 .030 .040 .060
