Engine Piston Set | 1160.030

  • 2.944" diameter recess .115" deep.
  • 2 angled valve reliefs.
  • Head volume +15.5.

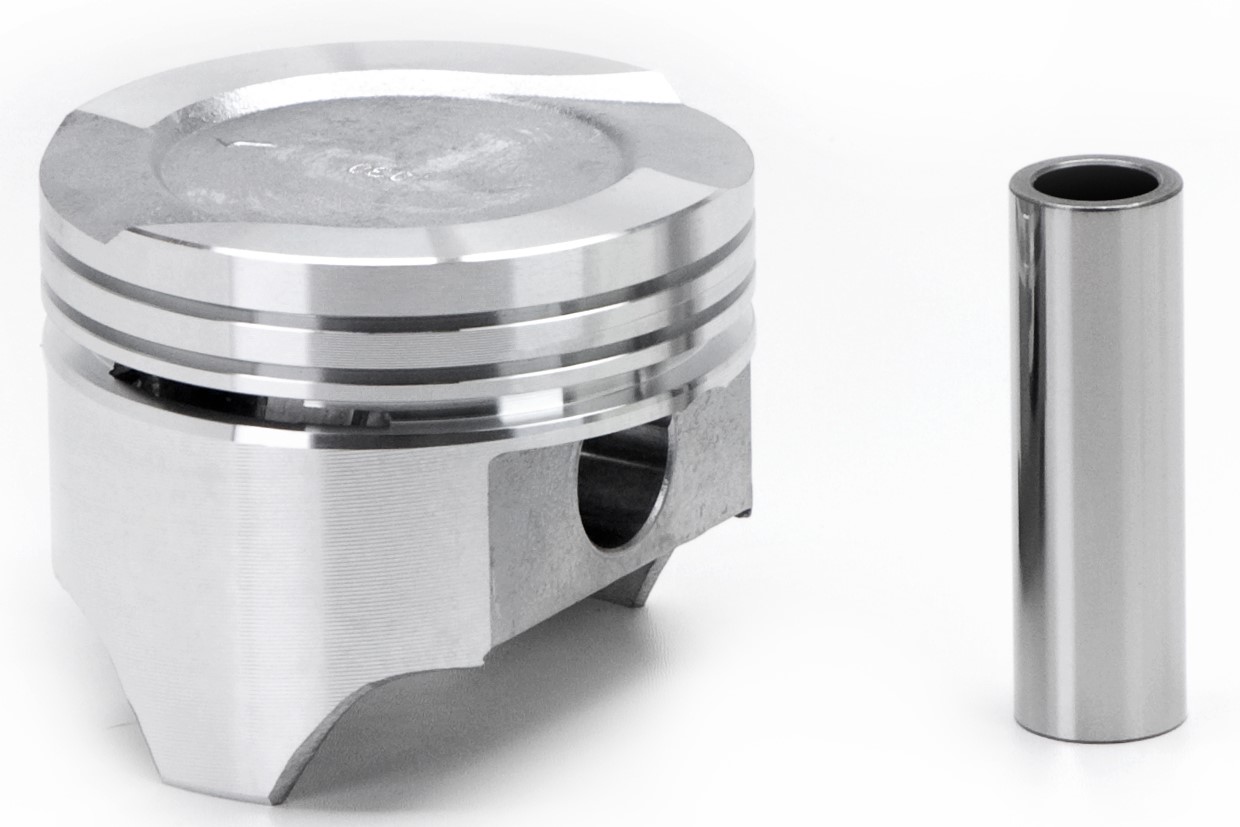

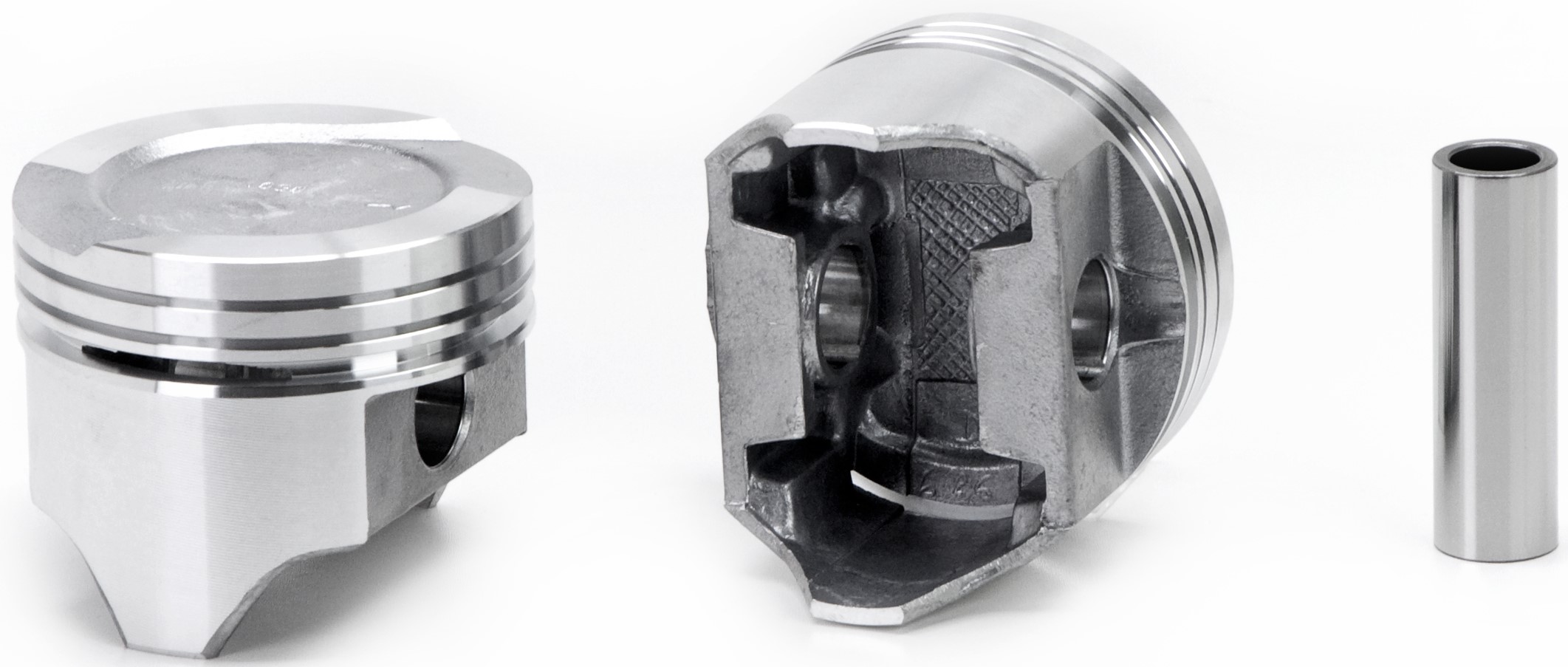

Silv-O-Lite Piston - Ford 400ci/6.6L (V8)

PDF Documents
SIL_Instruc.pdf pdf Installation Instruction

Also Available...

Product Specifications

Sold As Complete Piston Set
Engine Manufacturer Ford
Engine Family Ford Modified
Eng. Disp. In. 400
Year Range 1971-1982
Piston Material Cast 332 Alloy
Oe Assembly D1AZ6108A-B, D2AZ6108G-H, D3AZ6108G-H
Bore Diameter MM 101.6
Bore (in) 4
Bore (mm) 101.6
Oversized Yes
Oversize .030
Ring Pack 5/64, 5/64, 3/16
Top Land .330
Pin Number 0975x305C
Pin Type Press
Pin Configuration Offset
Compression Height IN 1.63
Compression Height MM 41.4
Crown Type DISH
Crown (cc) +15.5
Compression Ratio 7.9
Oversizes STD .020 .030 .040 .060
